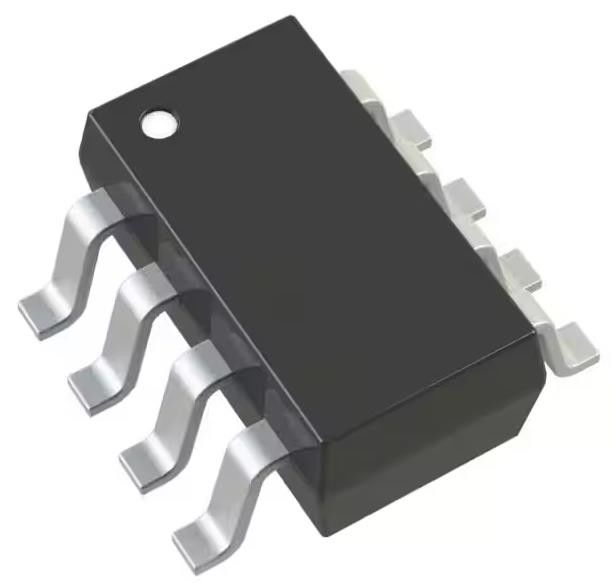

AD5160BRJZ10-R2 Digital Potentiometer 10k Ohm 1 Circuit 256 Taps SPI Interface
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD5160BRJZ10-R2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Taper: | Linear | Configuration: | Potentiometer |
|---|---|---|---|
| Number Of Circuits: | 1 | Number Of Taps: | 256 |
| Resistance (Ohms): | 10k | Interface: | SPI |
| Voltage - Supply: | 2.7V ~ 5.5V | Tolerance: | ±15% |
Product Description
AD5160BRJZ10-R2 Digital Potentiometer 10k Ohm 1 Circuit 256 Taps SPI Interface
Specifications of AD5160BRJZ10-R2
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital Potentiometers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Taper | Linear |
| Configuration | Potentiometer |
| Number of Circuits | 1 |
| Number of Taps | 256 |
| Resistance (Ohms) | 10k |
| Interface | SPI |
| Memory Type | Volatile |
| Voltage - Supply | 2.7V ~ 5.5V |
| Features | - |
| Tolerance | ±15% |
| Temperature Coefficient (Typ) | 45ppm/°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-8 |
| Package / Case | SOT-23-8 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Resistance - Wiper (Ohms) (Typ) | 50 |
| Base Product Number | AD5160 |
Features of AD5160BRJZ10-R2
* 256-position
* End-to-end resistance: 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
* Compact SOT-23-8 (2.9 mm × 3 mm) package
* SPI-compatible interface
* Power-on preset to midscale
* Single supply: 2.7 V to 5.5 V
* Low temperature coefficient: 45 ppm/°C
* Low power, IDD = 8 μA
* Wide operating temperature: –40°C to +125°C
* Evaluation board available
Applications of AD5160BRJZ10-R2
* Mechanical potentiometer replacement in new designs
* Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
* RF amplifier biasing
* Gain control and offset adjustment
Environmental & Export Classifications of AD5160BRJZ10-R2
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
