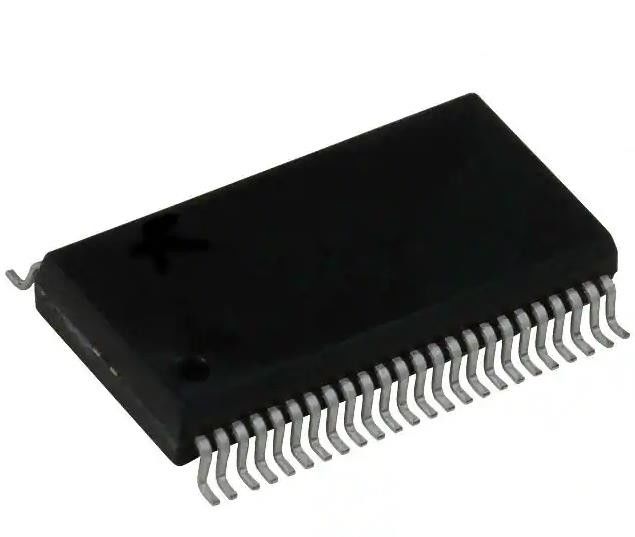

74LVTH162244DGGRG4 Buffer Non-Inverting 4 Element 4 Bit per Element 3-State Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74LVTH162244DGGRG4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 4 |
|---|---|---|---|
| Number Of Bits Per Element: | 4 | Output Type: | 3-State |
| Current - Output High, Low: | 12mA, 12mA | Voltage - Supply: | 2.7V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 48-TFSOP (0.240", 6.10mm Width) |
Product Description
74LVTH162244DGGRG4 Buffer Non-Inverting 4 Element 4 Bit per Element 3-State Output
Specifications of 74LVTH162244DGGRG4
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVTH |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74LVTH162244 |
Features of 74LVTH162244DGGRG4
•Members of the Texas Instruments Widebus™ Family
• Output Ports Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required
• Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
• Support Unregulated Battery Operation Down to 2.7 V
• Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
• Ioff and Power-Up 3-State Support Hot Insertion
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Distributed VCC and GND Pins Minimize High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• Latch-Up Performance Exceeds 500 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
Applications of 74LVTH162244DGGRG4
The 'LVTH162244 devices are 16-bit buffers and line drivers designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.
Environmental & Export Classifications of 74LVTH162244DGGRG4
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
