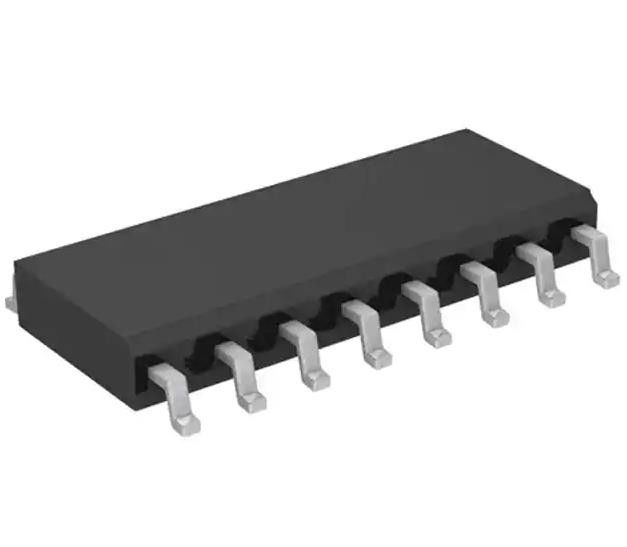

670M-03ILFT Clock Synchronizer, Zero Delay Buffer IC 210MHz 1 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 670M-03ILFT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Clock Synchronizer, Zero Delay Buffer | PLL: | Yes |
|---|---|---|---|
| Input: | Clock | Output: | CMOS |
| Number Of Circuits: | 1 | Ratio - Input:Output: | 1:01 |
| Differential - Input:Output: | No/No | Frequency - Max: | 210MHz |
Product Description
670M-03ILFT Clock Synchronizer, Zero Delay Buffer IC 210MHz 1 16-SOIC
Specifications of 670M-03ILFT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Renesas Electronics America Inc |
| Series | ClockBlocks™ |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Clock Synchronizer, Zero Delay Buffer |
| PLL | Yes |
| Input | Clock |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:01 |
| Differential - Input:Output | No/No |
| Frequency - Max | 210MHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 670M |
Features of 670M-03ILFT
• Packaged in 16-pin SOIC
• Pb (lead) free package, RoHS compliant
• Clock inputs from 5 to 210 MHz (see page 2)
• Patented PLL with low phase noise
• Output clocks up to 210 MHz at 3.3V
• 15 selectable on-chip multipliers
• Power down mode available
• Low phase noise: -124 dBc/Hz at 10 kHz
• Output enable function tri-states outputs
• Low jitter 15 ps one sigma
• Advanced, low power, sub-micron CMOS process
• Industrial temperature rated
• Operating voltage of 3.3 V or 5 V
Applications of 670M-03ILFT
The ICS670-03 is a high speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT’s proprietary analog/digital Phase Locked Loop (PLL) techniques.
Environmental & Export Classifications of 670M-03ILFT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
