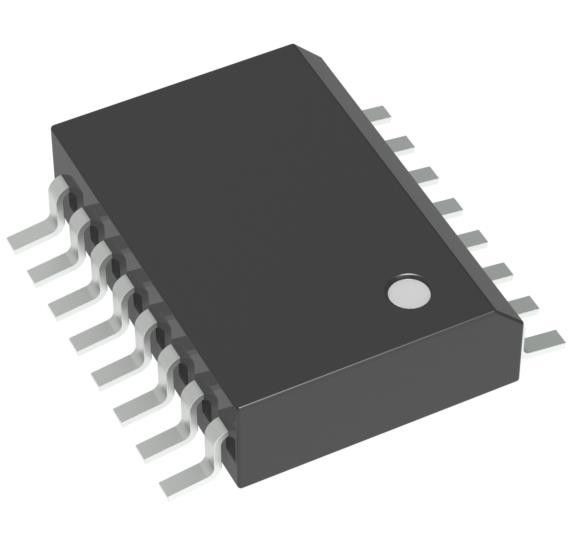

MC14536BDWG Programmable Timer IC 2MHz 16-SOIC Integrated Circuit Chip
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MC14536BDWG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Frequency: | 2MHz | Voltage - Supply: | 3V ~ 18V |
|---|---|---|---|
| Current - Supply: | 15 µA | Operating Temperature: | -55°C ~ 125°C |
| Package / Case: | 16-SOIC (0.295", 7.50mm Width) | Type: | Programmable Timer |
Product Description
MC14536BDWG Programmable Timer IC 2MHz 16-SOIC Integrated Circuit Chip
Specifications of MC14536BDWG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Type | Programmable Timer |
| Count | - |
| Frequency | 2MHz |
| Voltage - Supply | 3V ~ 18V |
| Current - Supply | 15 µA |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | MC14536 |
Features of MC14536BDWG
• 24 Flip−Flop Stages − Will Count From 20 to 224
• Last 16 Stages Selectable By Four−Bit Select Code
• 8−Bypass Input Allows Bypassing of First Eight Stages
• Set and Reset Inputs
• Clock Inhibit and Oscillator Inhibit Inputs
• On−Chip RC Oscillator Provisions
• On−Chip Monostable Output Provisions
• Clock Conditioning Circuit Permits Operation with Very Long Rise and Fall Times
• Test Mode Allows Fast Test Sequence
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load over the Rated Temperature Range
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications of MC14536BDWG
The MC14536B programmable timer is a 24−stage binary ripple counter with 16 stages selectable by a binary code.
Environmental & Export Classifications of MC14536BDWG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
