LTC3026EDD#TRPBF Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTC3026EDD#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 3.5V, 5.5V | Voltage - Output (Min/Fixed): | 0.4V |
| Voltage - Output (Max): | 2.6V | Voltage Dropout (Max): | 0.25V @ 1.5A |
| Current - Output: | 1.5A | Control Features: | Enable, Power Good |
Product Description
LTC3026EDD#TRPBF Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A
Specifications of BM03B-PASS-1-TFT(LF)(SN)
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 3.5V, 5.5V |
| Voltage - Output (Min/Fixed) | 0.4V |
| Voltage - Output (Max) | 2.6V |
| Voltage Dropout (Max) | 0.25V @ 1.5A |
| Current - Output | 1.5A |
| PSRR | - |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

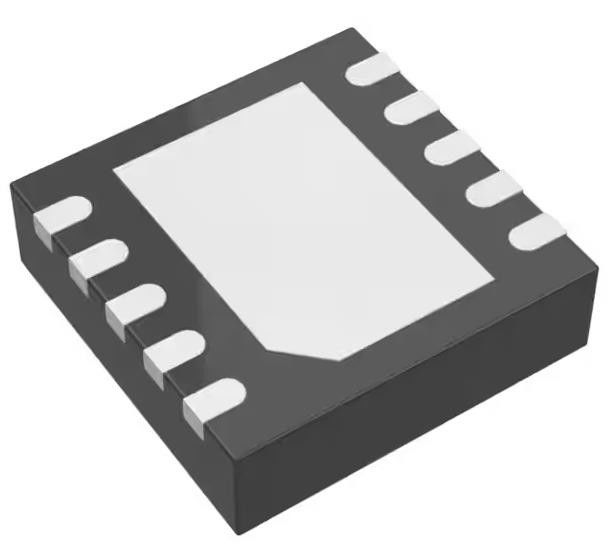

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| Base Product Number | LTC3026 |
Features of BM03B-PASS-1-TFT(LF)(SN)
* Input Voltage Range:
- 1.14V to 3.5V (with Boost Enabled)
- 1.14V to 5.5V (with External 5V Boost)
* Low Dropout Voltage: 100mV at IOUT = 1.5A
* Adjustable Output Range: 0.4V to 2.6V
* Output Current: Up to 1.5A
* Excellent Supply Rejection Even Near Dropout
* Shutdown Disconnects Load from VIN and VBST
* Low Operating Current: IIN = 950µA at VIN = 1.5V
* Low Shutdown Current:
- IIN < 1µA (Typ), IBST = 0.1µA (Typ)
- Stable with 10µF or Greater Ceramic Capacitors
- Short-Circuit, Reverse Current Protected
- Overtemperature Protected
- Available in 10-Lead MSOP and 10-Lead (3mm × 3mm) DFN Packages
Applications of BM03B-PASS-1-TFT(LF)(SN)
* High Efficiency Linear Regulator
* Post Regulator for Switching Supplies
* Microprocessor Supply
Environmental & Export Classifications of BM03B-PASS-1-TFT(LF)(SN)
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
