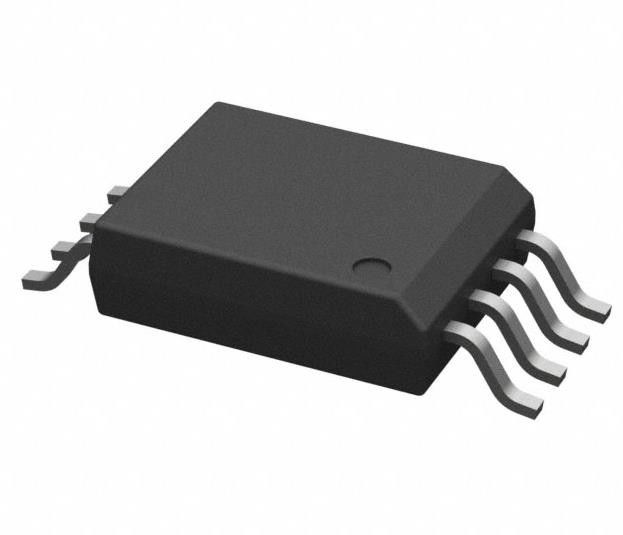

AMC1301DWVR Isolation Integrated Circuit Chip Amplifier 1 Circuit 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AMC1301DWVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | Isolation | Number Of Circuits: | 1 |
|---|---|---|---|
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 60 µA |
| Voltage - Input Offset: | 50 µV | Current - Supply: | 5.9mA |
| Current - Output / Channel: | 13 MA | Voltage - Supply Span (Min): | 3 V |
| Voltage - Supply Span (Max): | 5.5 V | ||
Product Description
AMC1301DWVR Isolation Integrated Circuit Chip Amplifier 1 Circuit 8-SOIC
Specifications of AMC1301DWVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 60 µA |
| Voltage - Input Offset | 50 µV |
| Current - Supply | 5.9mA |
| Current - Output / Channel | 13 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AMC1301 |
Features of AMC1301DWVR
• ±250-mV input voltage range optimized for current measurements using shunt resistors
• Fixed gain: 8.2 V/V
• Low DC errors:
– Offset error: ±0.2 mV (max)
– Offset drift: ±3 µV/°C (max)
– Gain error: ±0.3% (max)
– Gain drift: ±50 ppm/°C (max)
– Nonlinearity: 0.03% (max)
• 3.3-V operation on high-side and low-side
• System-level diagnostic features
• Safety-related certifications:
– 7070-VPK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)
– 5000-VRMS isolation for 1 minute per UL1577
• Fully specified over the extended industrial temperature range: –40°C to +125°C
Applications of AMC1301DWVR
• Shunt-resistor-based current sensing in:
– Motor drives
– Frequency inverters
– Uninterruptible power supplies
Environmental & Export Classifications of AMC1301DWVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
