TS5A23157DGSR 2 Circuit Integrated Circuit Chip IC Switch 2:1 10Ohm 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS5A23157DGSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Circuit: | SPDT | Multiplexer/Demultiplexer Circuit: | 2:01 |
|---|---|---|---|
| Number Of Circuits: | 2 | On-State Resistance (Max): | 10Ohm |
| Channel-to-Channel Matching (ΔRon): | 150mOhm | Voltage - Supply, Single (V+): | 1.65V ~ 5.5V |
| Switch Time (Ton, Toff) (Max): | 5.7ns, 3.8ns | -3db Bandwidth: | 220MHz |
| Charge Injection: | 7pC | ||
Product Description

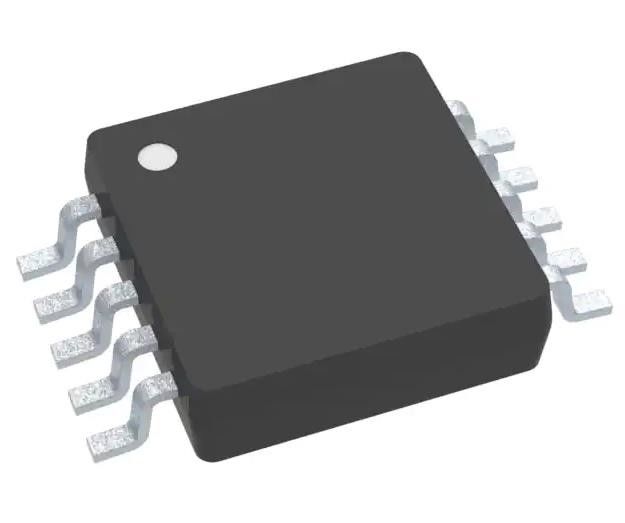

TS5A23157DGSR 2 Circuit Integrated Circuit Chip IC Switch 2:1 10Ohm 10-VSSOP
Specifications of TS5A23157DGSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | 220MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -66dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | TS5A23157 |
Features of TS5A23157DGSR
• Low ON-State Resistance (15 Ω at 125℃)
• 125℃ Operation
• Control Inputs are 5-V Tolerant
• Specified Break-Before-Make Switching
• Low Charge Injection
• Excellent ON-Resistance Matching
• Low Total Harmonic Distortion
• 1.8-V to 5.5-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 1000-V Charged-Device Model (C101)
Applications of TS5A23157DGSR
• Sample-and-Hold Circuits
• Battery-Powered Equipment
• Audio and Video Signal Routing
• Communication Circuits
Environmental & Export Classifications of TS5A23157DGSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
