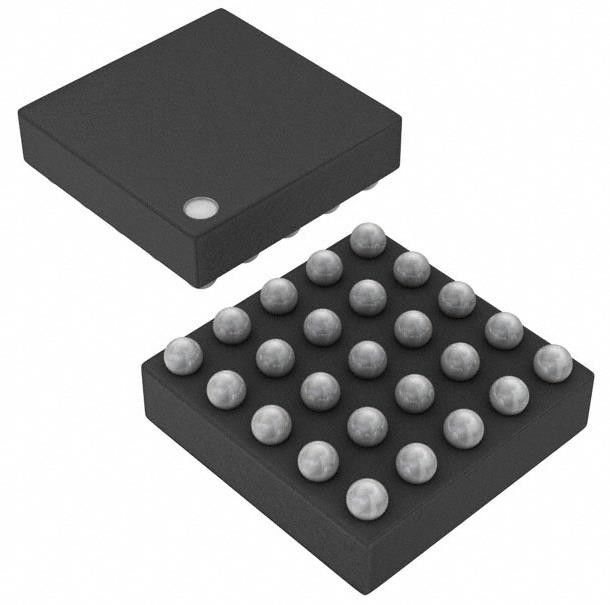

BQ25120AYFPR Integrated Circuit Chip Charger IC Lithium Ion/Polymer 25-DSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BQ25120AYFPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs |
|
Detail Information |
|||
| Battery Chemistry: | Lithium Ion/Polymer | Number Of Cells: | 1 |
|---|---|---|---|
| Current - Charging: | Constant - Programmable | Programmable Features: | Current |
| Fault Protection: | Over Temperature, Over Voltage, Short Circuit | Charge Current - Max: | 300mA |
| Battery Pack Voltage: | 4.2V | Voltage - Supply (Max): | 5.5V |
Product Description
BQ25120AYFPR Integrated Circuit Chip Charger IC Lithium Ion/Polymer 25-DSBGA
Specifications of BQ25120AYFPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Chargers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 300mA |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 5.5V |
| Interface | I²C |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 25-XFBGA, DSBGA |
| Supplier Device Package | 25-DSBGA |
| Base Product Number | BQ25120 |
Features of BQ25120AYFPR
• Increases System Operation Time Between Charges
– Configurable 300-mA Buck Regulator (1.8-V Default)
– 700 nA (typical) Iq with Buck Converter Enabled (No Load)
– Configurable Load Switch or 100mA LDO Output (Load Switch by Default)
– Up to 300-mA Charge Current for Fast Charging
– 0.5% Accurate Battery Voltage Regulation (Configurable from 3.6 V to 4.65 V in 10-mV Steps)
– Configurable Termination Current Down to 500 µA
– Simple Voltage Based Battery Monitor
• Highly Integrated Solution with Small Footprint
– 2.5 mm x 2.5 mm WCSP Package and 6 External Components for Minimal Solution
– Push-Button Wake-Up and Reset with Adjustable Timers
– Power Path Management for Powering the System and Charging the Battery
– Power Path Management enables <50 nA Ship Mode Battery Quiescent Current for Longest Shelf Life
– Battery Charger Operates from 3.4 V – 5.5 VIN (5.5-V OVP / 20-V Tolerant)
– Dedicated Pins for Input Current Limit, Charge Current, Termination Current, and Status Output
• I2C Communication Control
– Charge Voltage and Current
– Termination Threshold
– Input Current Limit
– VINDPM Threshold
– Timer Options
– Load Switch Control
– Controls for Interrupts for Faults and Status
– System Output Voltage Adjustment
– LDO Output Voltage Adjustment
Applications of BQ25120AYFPR
• Smart Watches and other Wearable Devices
• Fitness Accessories
• Health Monitoring Medical Accessories
• Rechargeable Toys
Environmental & Export Classifications of BQ25120AYFPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
