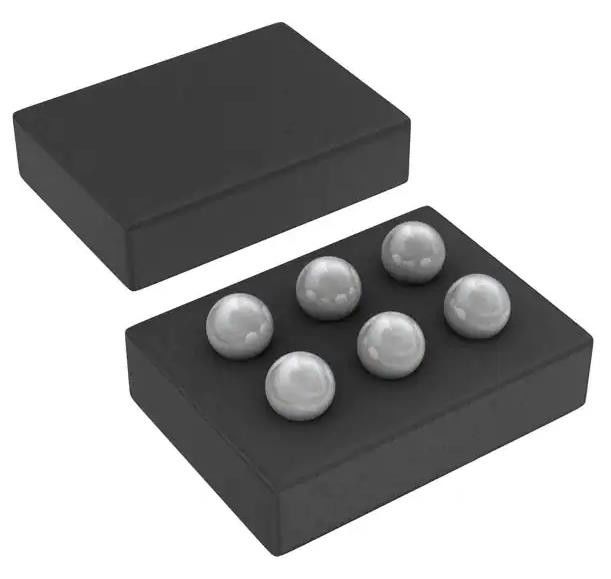

HDC2010YPAT Humidity, Temperature 0 ~ 100% RH I²C ±2% 8 s Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HDC2010YPAT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs |
|
Detail Information |
|||
| Sensor Type: | Humidity, Temperature | Humidity Range: | 0 ~ 100% RH |
|---|---|---|---|
| Output Type: | I²C | Output: | 11b |
| Accuracy: | ±2% | Response Time: | 8 S |
Product Description
HDC2010YPAT Humidity, Temperature 0 ~ 100% RH I²C ±2% 8 s Surface Moun
Specifications of HDC2010YPAT
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Humidity, Moisture Sensors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Sensor Type | Humidity, Temperature |
| Humidity Range | 0 ~ 100% RH |
| Output Type | I²C |
| Output | 11b |
| Accuracy | ±2% |
| Response Time | 8 s |
| Sensitivity | - |
| Voltage - Supply | 1.62V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-WFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA |
| Base Product Number | HDC2010 |
Features of HDC2010YPAT
• Relative humidity range: 0% to 100%
• Humidity accuracy: ±2%
• Sleep current: 50 nA
• Average supply current (1 measurement per second)
– RH only (11 bit): 300 nA
– RH (11 bit) + temperature (11 bit): 550 nA
• Temperature range:
– Operating: –40°C to 85°C
– Functional: –40°C to 125°C
• Temperature accuracy: ±0.2°C typical
• Supply voltage: 1.62 V to 3.6 V
• Programmable sampling rate (5 Hz, 2 Hz, 1 Hz, 0.2 Hz, 0.1 Hz, 1/60 Hz, 1/120 Hz) or trigger on demand
• I2C interface
Applications of HDC2010YPAT
• Smart thermostats
• Smart home assistants
• Refrigerators
• Refrigerated transport
• Washer/dryers
• HVAC systems
• Gas sensing
• Communications equipment
• Environmental tags
• Smoke and heat detectors
• Inkjet printers
• Surveillance cameras
• CPAP machines
• Wearables
Environmental & Export Classifications of HDC2010YPAT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
