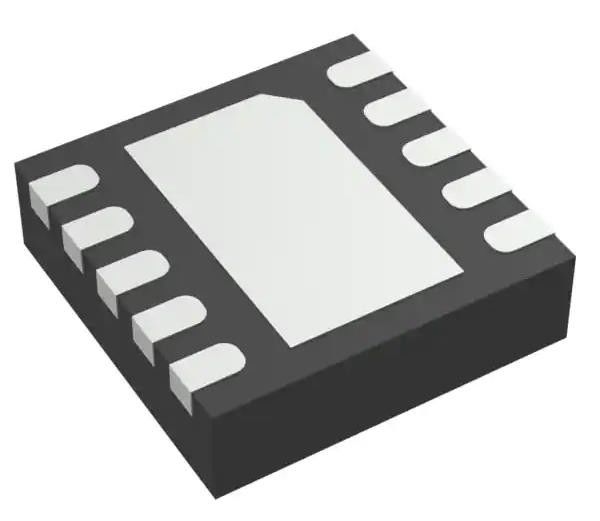

TPS62302DRCR Buck Switching Regulator IC Positive Fixed 1.6V 1 Output 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62302DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 2.7V | Voltage - Input (Max): | 6V |
| Voltage - Output (Min/Fixed): | 1.6V | Current - Output: | 500mA |
| Frequency - Switching: | 3MHz | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
TPS62302DRCR Buck Switching Regulator IC Positive Fixed 1.6V 1 Output 500mA
Specifications of TPS62302DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.6V |
| Voltage - Output (Max) | - |
| Current - Output | 500mA |
| Frequency - Switching | 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS62302 |
Features of TPS62302DRCR
* Up to 93% Efficiency at 3-MHz Operation
* Up to 500-mA Output Current at V, = 2.7 V
* 3-MHz Fixed Frequency Operation
* Best in Class Load and Line Transient
* Complete 1-mm Component Profile Solution
* -0.5% 1 +1.3% PWM DC Voltage Accuracy Over Temperature
* 35-ns Minimum On-Time
* Power-Save Mode Operation at Light Load Currents
* Fixed and Adjustable Output Voltage
* Only 86-uA Quiescent Current
* 100% Duty Cycle for Lowest Dropout
* Synchronizable On the Fly to ExternalClock Signal
* Integrated Active Power-Down Sequencing(TPS6232x only)
* Available in a 10-Pin QFN (3 x 3 mm), 8-PinNanoFreerm, and NanoStarrm (CSP) Packaging
Applications of TPS62302DRCR
* Cell Phones, Smart-Phones
* WLAN and Bluetooth rw Applications
* Micro DC-DC Converter Modules
* PDAs, Pocket PCsUSB-Based DSL Modems
* Digital Cameras
Environmental & Export Classifications of TPS62302DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
