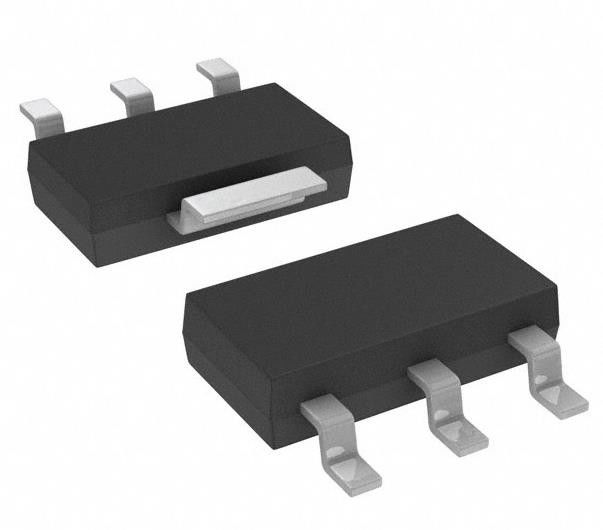

BSP318S H6327 N-Channel 60 V 2.6A (Tj) 1.8W (Ta) Surface Mount PG-SOT223-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BSP318S H6327 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 60 V | Current - Continuous Drain (Id) @ 25°C: | 2.6A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 90mOhm @ 2.6A, 10V |
| Vgs(th) (Max) @ Id: | 2V @ 20µA | Gate Charge (Qg) (Max) @ Vgs: | 20 NC @ 10 V |
| Vgs (Max): | ±20V | ||
Product Description
BSP318S H6327 N-Channel 60 V 2.6A (Tj) 1.8W (Ta) Surface Mount PG-SOT223-4
Specifications of BSP318S H6327
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | SIPMOS® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Last Time Buy |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 2.6A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 2.6A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 380 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT223-4 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | BSP318 |
Features of BSP318S H6327
• N-Channel
• Enhancement mode
• Avalanche rated
• Logic Level
• dv/dt rated
• Pb-free lead plating; RoHS compliant
• Qualified according to AEC Q101
Environmental & Export Classifications of BSP318S H6327
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
