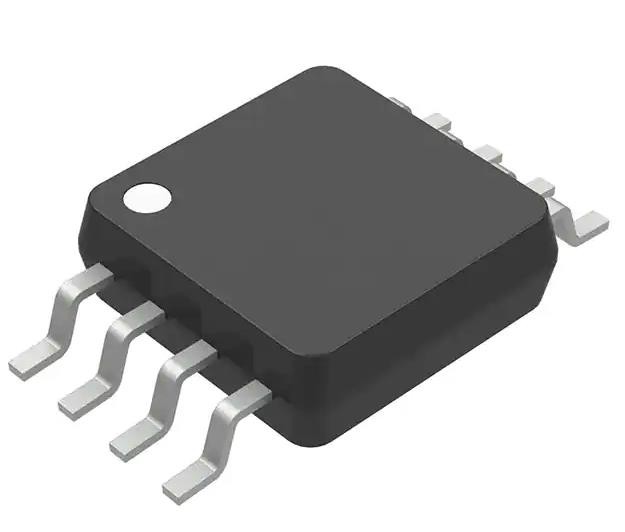

NCV2903DMR2G Comparator General Purpose CMOS DTL ECL MOS Open-Collector
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCV2903DMR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | General Purpose | Number Of Elements: | 2 |
|---|---|---|---|
| Output Type: | CMOS, DTL, ECL, MOS, Open-Collector, TTL | Voltage - Supply, Single/Dual (±): | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max): | 7mV @ 30V | Current - Input Bias (Max): | 0.25µA @ 5V |
| Current - Output (Typ): | 16mA @ 5V | 16mA @ 5V: | 2.5mA |
| Operating Temperature: | -40°C ~ 125°C | ||
Product Description
NCV2903DMR2G Comparator General Purpose CMOS DTL ECL MOS Open-Collector
Specifications of NCV2903DMR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 2 |
| Output Type | CMOS, DTL, ECL, MOS, Open-Collector, TTL |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 7mV @ 30V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| Current - Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | - |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Base Product Number | NCV2903 |
Features of NCV2903DMR2G
• Wide Single−Supply Range: 2.0 Vdc to 36 Vdc
• Split−Supply Range: ±1.0 Vdc to ±18 Vdc
• Very Low Current Drain Independent of Supply Voltage: 0.4 mA
• Low Input Bias Current: 25 nA
• Low Input Offset Current: 5.0 nA
• Low Input Offset Voltage: 5.0 mV (max) LM293/393
• Input Common Mode Range to Ground Level
• Differential Input Voltage Range Equal to Power Supply Voltage
• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCV2903DMR2G
The LM393 series are dual independent precision voltage comparators capable of single or split supply operation.
Environmental & Export Classifications of NCV2903DMR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
