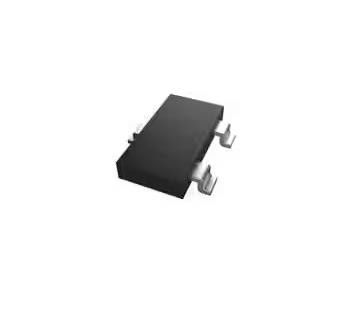

DTC123YCA-TP Pre-Biased Bipolar Transistor NPN 50 V 100 mA 250 MHz 200 mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DTC123YCA-TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | NPN - Pre-Biased | Current - Collector (Ic) (Max): | 100 MA |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50 V | Resistor - Base (R1): | 2.2 KOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 33 @ 10mA, 5V | Vce Saturation (Max) @ Ib, Ic: | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max): | 500nA | Frequency - Transition: | 250 MHz |
| Power - Max: | 200 MW | ||
Product Description
DTC123YCA-TP Pre-Biased Bipolar Transistor NPN 50 V 100 mA 250 MHz 200 mW
Specifications of DTC123YCA-TP
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single, Pre-Biased Bipolar Transistors | |
| Mfr | Micro Commercial Co |
| Series | - |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 2.2 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 33 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 250 MHz |
| Power - Max | 200 mW |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Base Product Number | DTC123 |
Features of DTC123YCA-TP
• Epitaxial Planar Die Construction
• Built-In Biasing Resistors
• Halogen Free. "Green" Device (Note 1)
• Moisture Sensitivity Level 1
• Epoxy Meets UL 94 V-0 Flammability Rating
• Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant.See Ordering Information)
Environmental & Export Classifications of DTC123YCA-TP
| ATTRIBUTE | DESCRIPTION |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
