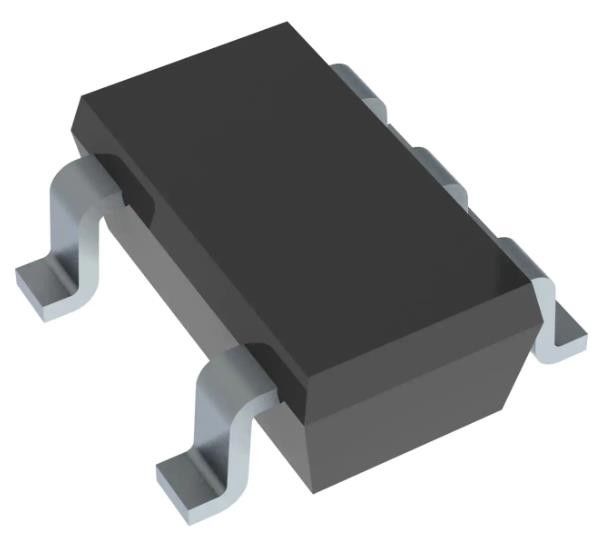

TPS3125L30DBVR Supervisor Push-Pull Totem Pole 1 Channel SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3125L30DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Simple Reset/Power-On Reset | Voltage - Threshold: | 2.64V |
|---|---|---|---|
| Number Of Voltages Monitored: | 1 | Output: | Push-Pull, Totem Pole |
| Reset: | Active High/Active Low | Reset Timeout: | 100ms Minimum |
| 100ms Minimum: | -40°C ~ 85°C (TA) | ||
Product Description
TPS3125L30DBVR Supervisor Push-Pull Totem Pole 1 Channel SOT-23-5
Specifications of TPS3125L30DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| DigiKey Programmable | Not Verified |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 2.64V |
| Output | Push-Pull, Totem Pole |
| Reset | Active High/Active Low |
| Reset Timeout | 100ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS3125 |
Features of TPS3125L30DBVR
• Minimum Supply Voltage of 0.75 V
• Supply Voltage Supervision Range:
– 1.2 V, 1.5 V, 1.8 V (TPS312x)
– 3 V (TPS3125 Devices Only)
– Other Versions on Request
• Power-On Reset Generator With Fixed Delay Time of 180 ms
• Manual Reset Input (TPS3123/5/6/8)
• Watchdog Timer Retriggers the RESET Output at VDD≥ VIT
• Supply Current of 14 µA (Typ)
• Small SOT23-5 Package
• Temperature Range of -40°C to 85°C
• Reset Output Available in Push-Pull (Active Low and High) and Open-Drain (Active-Low)
Applications of TPS3125L30DBVR
• Applications Using Low Voltage DSPs, Microcontrollers, or Microprocessors
• Portable/Battery-Powered Equipment
• Wireless Communication Systems
• Programmable Controls
• Industrial Equipment
• Notebook/Desktop Computers
• Intelligent Instruments
Environmental & Export Classifications of TPS3125L30DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
