TPS2829DBVR Integrated Circuit Chip Low-Side Gate Driver IC Non-Inverting
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2829DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Single |
|---|---|---|---|
| Number Of Drivers: | 1 | Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 4V ~ 14V | Logic Voltage - VIL, VIH: | 1V, 4V |
| Current - Peak Output (Source, Sink): | 2A, 2A | ||
Product Description

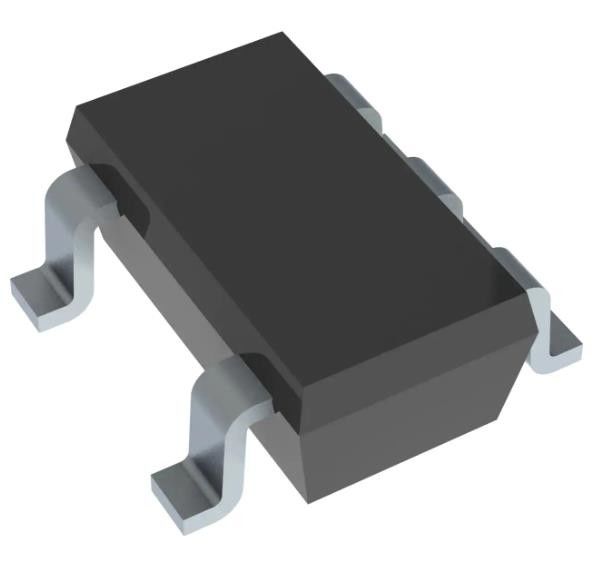

TPS2829DBVR Integrated Circuit Chip Low-Side Gate Driver IC Non-Inverting
Specifications of TPS2829DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 14V |
| Logic Voltage - VIL, VIH | 1V, 4V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 14ns, 14ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS2829 |
Features of TPS2829DBVR
*Low-Cost Single-Channel High-Speed MOSFET Driver
ICC ... 15-µA Max (TPS2828, TPS2829)
25-ns Max Rise/Fall Times and 40-ns Max Propagation Delay ... 1-nF Load
2-A Peak Output Current
4-V to 14-V Driver Supply Voltage Range; Internal Regulator Extends Range to 40 V (TPS2816, TPS2817, TPS2818, TPS2819)
5-pin SOT-23 Package
–40°C to 125°C Ambient-Temperature Operating Range
Highly Resistant to Latch-ups
