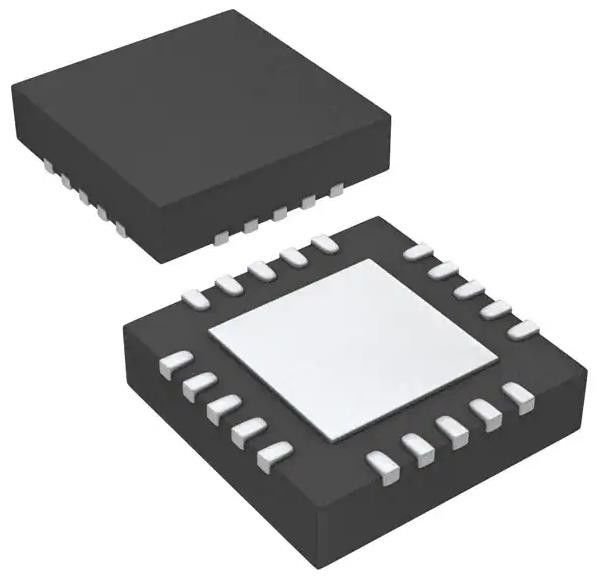

TPS2231MRGPR Integrated Circuit Chip Power Switch/Driver 1:1 1.3A 20-QFN (4x4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2231MRGPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Switch Type: | ExpressCard™ Switch | Number Of Outputs: | 3 |
|---|---|---|---|
| Ratio - Input:Output: | 0.042361111 | Output Configuration: | High Side |
| Voltage - Load: | 1.5V, 3.3V | Current - Output (Max): | 1.3A |
| Rds On (Typ): | 45mOhm | ||
Product Description
TPS2231MRGPR Integrated Circuit Chip Power Switch/Driver 1:1 1.3A 20-QFN (4x4)
Specifications of TPS2231MRGPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Switch Type | ExpressCard™ Switch |
| Number of Outputs | 3 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | - |
| Interface | - |
| Voltage - Load | 1.5V, 3.3V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.3A |
| Rds On (Typ) | 45mOhm |
| Input Type | - |
| Features | Power Good, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (4x4) |
| Package / Case | 20-VFQFN Exposed Pad |
| Base Product Number | TPS2231 |
Features of TPS2231MRGPR
* Meets the ExpressCardrw Standard(ExpressCard]34 or ExpressCard 54)
* Compliant with the ExpressCard 7mCompliance Checklists
* Fully Satisfies the ExpressCard rmlmplementation Guidelines
* Supports Systems with WAKE Function
* TTL-Logic Compatible Inputs
* Short Circuit and Thermal Protection
* -40C to 85°C Ambient OperatingTemperature Range
Applications of TPS2231MRGPR
* Notebook Computers
* Desktop Computers
* Personal Digital Assistants (PDAs)
* Digital Cameras
* TV and Set Top Boxes
Environmental & Export Classifications of TPS2231MRGPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
