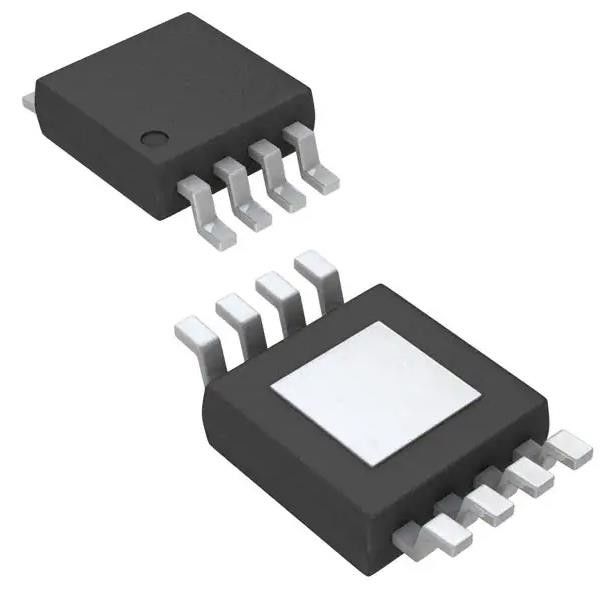

TPA2005D1DGNR Integrated Circuit Amplifier IC 1-Channel (Mono) Class D 8-HVSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA2005D1DGNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Differential Inputs, Short-Circuit And Thermal Protection, Shutdown | Type: | Class D |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 1.45W X 1 @ 8Ohm |
| Voltage - Supply: | 2.5V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 8-HVSSOP | ||
Product Description
TPA2005D1DGNR Integrated Circuit Amplifier IC 1-Channel (Mono) Class D 8-HVSSOP
Specifications of TPA2005D1DGNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.45W x 1 @ 8Ohm |
| Voltage - Supply | 2.5V ~ 5.5V |
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-HVSSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Base Product Number | TPA2005 |
Features of TPA2005D1DGNR
* 1.4 W Into 8 Q From a 5 V Supply atTHD = 10%(Typ)
* Maximum Battery Life and Minimum Heat
- Efficiency With an 8-Q Speaker:
- 84% at 400 mW
- 79% at 100 mW
- 2.8-mA Quiescent Current
- 0.5-A Shutdown Current
* Capable of Driving an
- 8-Q Speaker (2.5 V s Vop s 5.5 V) and a
- 4-Q Speaker (2.5 V s Vop s 4.2 V)
* Only Three External Components
- Optimized PWM Output Stage Eliminates LCOutput Filter
- Internally Generated 250-kHz SwitchingFrequency Eliminates Capacitor & Resistor
- Improved PSRR (-71 dB at 217 Hz) andWide Supply Voltage (2.5 V to 5.5 V)Eliminates Need for a Voltage Regulator
- Fully Differential Desian Reduces RFRectification & Eliminates Bypass Capacitor
- lmproved CMRR Eliminates Two InputCoupling Capacitors
* Space Saving Package
- 3 mm x 3 mm QFN package (DRB)
- 2.5 mm x 2.5 mm MicroStar JuniorTm BGAPackage (ZQY)
- 3 mm x 5 mm MSOP PowerPAD TM Package(DGN)
* Use TPA2006D1 for 1.8 V Logic Compatibility onShutdown Pin
Applications of TPA2005D1DGNR
Ideal for Wireless or Cellular Handsets and PDAs
Environmental & Export Classifications of TPA2005D1DGNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
