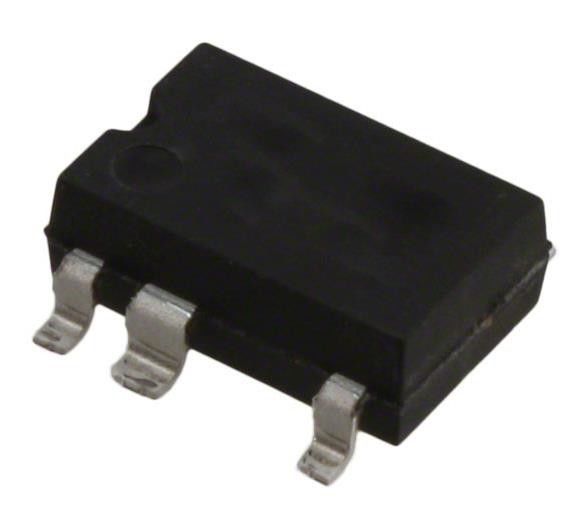

TOP253GN Integrated Circuit Chip Converter Offline Flyback Topology 66kHz SMD-8C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TOP253GN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Isolation: | Isolated | Internal Switch(s): | Yes |
|---|---|---|---|
| Voltage - Breakdown: | 700V | Topology: | Flyback |
| Duty Cycle: | 78% | Frequency - Switching: | 66kHz |
| Power (Watts): | 25 W | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Package / Case: | 8-SMD (7 Leads), Gull Wing | ||
Product Description
TOP253GN Converter IC Offline Flyback Topology 66kHz SMD-8C
Specifications of TOP253GN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Mfr | Power Integrations |
| Series | TOPSwitch®-HX |
| Package | Tube |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 25 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | SMD-8C |
| Mounting Type | Surface Mount |
| Base Product Number | TOP253 |
Features of TOP253GN
* Multi-mode operation maximizes effi ciency at all loads
* New eSIP-7F and eSIP-7C packages
* Low thermal impedance junction-to-case (2 °C per watt)
* Low height is ideal for adapters where space is limited
* Simple mounting using a clip to aid low cost manufacturing
* Horizontal eSIP-7F package ideal for ultra low height adapter and monitor applications
Applications of TOP253GN
High-voltage power MOSFET DRAIN pin. The internal start-up bias current is drawn from this pin through a switched highvoltage current source. Internal current limit sense point for drain current.
Environmental & Export Classifications of TOP253GN
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
