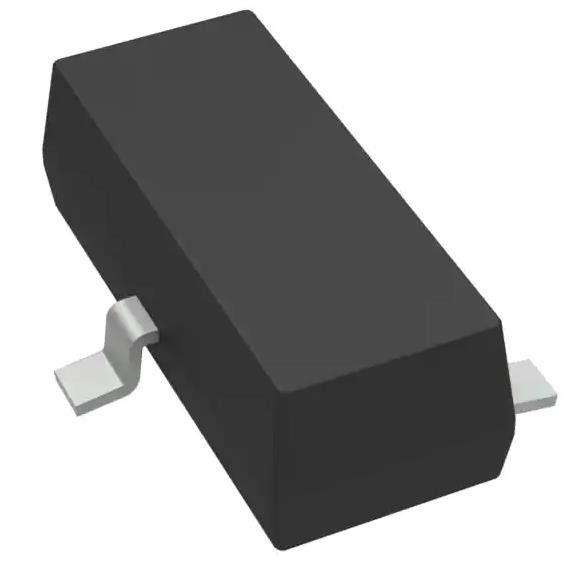

TLV809L30DBZT Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV809L30DBZT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Simple Reset/Power-On Reset | Simple Reset/Power-On Reset: | 1 |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 5.5V |
| Voltage Dropout (Max): | 0.45V @ 150mA | Current - Output: | 150mA |
| Current - Quiescent (Iq): | 55 µA | Voltage - Threshold: | 2.64V |
| Reset Timeout: | 120ms Minimum | ||
Product Description
TLV809L30DBZT Supervisor Push-Pull, Totem Pole 1 Channel SOT-23-3
Specifications of TLV809L30DBZT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 2.64V |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Reset Timeout | 120ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | TLV809 |
Features of TLV809L30DBZT
• Precision supply voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V
• Power-on reset generator with a fixed delay time of 200 ms
• Supply current: 9 µA (typical)
• Temperature range: –40°C to +85°C
• 3-Pin SOT-23 package
• Pin-for-pin compatible with the MAX809
Applications of TLV809L30DBZT
• Factory automation
• Portable and battery-powered equipment
• Set-top boxes
• Servers
• Appliances
• Electricity meters
• Building automation
Environmental & Export Classifications of TLV809L30DBZT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
