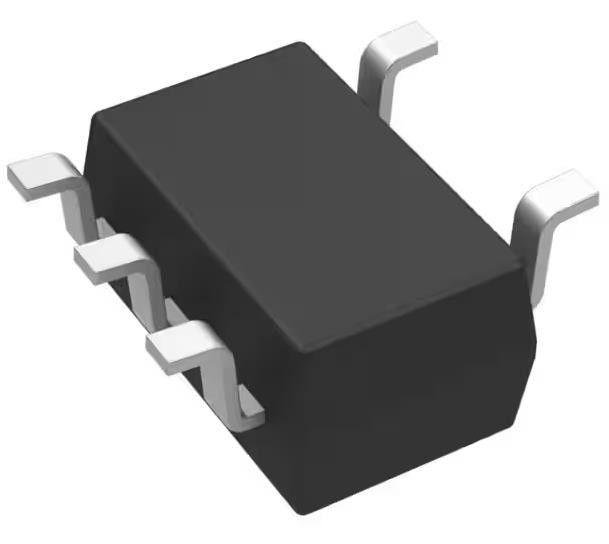

TL331SN4T3G Integrated Circuit Chip Comparator General Purpose 5-TSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL331SN4T3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | General Purpose | Number Of Elements: | 1 |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±): | 2V ~ 36V, ±1V ~ 18V | Voltage - Input Offset (Max): | 5mV @ 5V |
| Current - Input Bias (Max): | 0.25µA @ 5V | Current - Output (Typ): | 16mA @ 5V |
| Current - Quiescent (Max): | 1.25mA | Propagation Delay (Max): | 850ns (Typ) |
Product Description
TL331SN4T3G Integrated Circuit Chip Comparator General Purpose 5-TSOP
Specifications of TL331SN4T3G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Not For New Designs |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | - |
| Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 5mV @ 5V |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 16mA @ 5V |
| Current - Quiescent (Max) | 1.25mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 850ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-TSOP |
| Base Product Number | TL331 |
Features of TL331SN4T3G
• Wide Single Supply Voltage Range or Dual Supplies
• Low Supply Current: 0.5 mA Typical
• Low Input Bias Current: 25 nA Typical
• Low Input Offset Current: ±5 nA Typical
• Low Input Offset Voltage: ±2 mV Typical
• Input Common Mode Voltage Range includes Ground
• Low Output Saturation Voltage: 150 mV Typ at IO = 4 mA
• Differential Input Voltage Range Equal to the Supply Voltage
• TTL, DTL, ECL, CMOS Compatible Devices
• TL331V for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of TL331SN4T3G
The TL331 is an open collector, low−power comparator designed specifically to operate over a wide supply range from 2 V to 36 V single supply and ±1 V to ±18 V for split supplies. The input common−mode voltage range includes ground, even when operated from a single power supply voltage. TL331 comes in a space saving TSOP−5 package and is also available in an automotive qualified version.
Environmental & Export Classifications of TL331SN4T3G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
