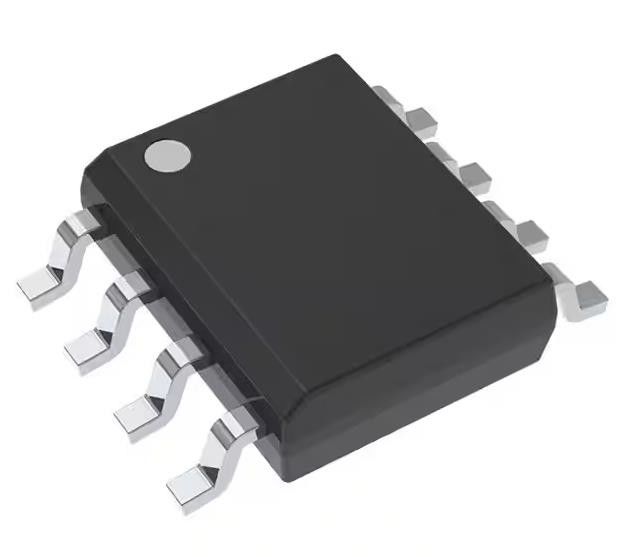

TL1431MDREP Shunt Voltage Reference IC Adjustable 2.5V 36 VV ±0.4% 100 mA 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL1431MDREP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Reference Type: | Shunt | Output Type: | Adjustable |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 2.5V | Voltage - Output (Max): | 36 V |
| Current - Output: | 100 MA | Tolerance: | ±0.4% |
| Current - Cathode: | 1 MA | Operating Temperature: | -55°C ~ 125°C (TA) |
Product Description
TL1431MDREP Shunt Voltage Reference IC Adjustable 2.5V 36 VV ±0.4% 100 mA 8-SOIC
Specifications of TL1431MDREP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 100 mA |
| Tolerance | ±0.4% |
| Temperature Coefficient | - |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 1 mA |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TL1431 |
Features of TL1431MDREP
* 0.4% Initial Voltage Tolerance
* 0.2-Q Typical Output Impedance
* Fast Turnon: 500 ns
* Sink Current Capability: 1 to 100 mA
* Low Reference Current (REF)
* Adjustable Output Voltage: Vi(ren to 36 V
* Supports Defense, Aerospace, and MedicalApplications
- Controlled Baseline
- One Assembly and Test Site
- One Fabrication Site
- Available in Military (-55'C to 125°C)Temperature Range
- Extended Product Life Cycle
- Extended Product-Change Notification
- Product Traceability
Applications of TL1431MDREP
* Shunt Regulators
* Temperature-Compensated Comparators
* PWM Converter Reference
* Photodiode Reference Drivers
* Precision Current Limiters
* Precision Current Sink
Environmental & Export Classifications of TL1431MDREP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
