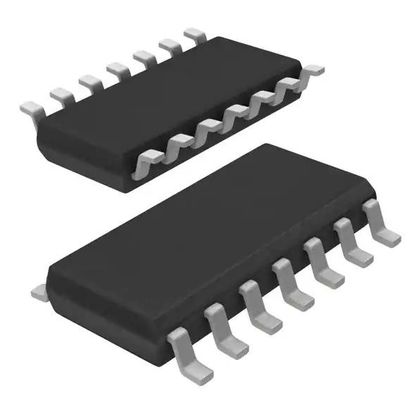

TJA1041AT/CM 1/1 Transceiver Integrated Circuit Chip Half CANbus 14-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TJA1041AT/CM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | CANbus |
|---|---|---|---|
| Number Of Drivers/Receivers: | 1/1 | Duplex: | Half |
| Receiver Hysteresis: | Receiver Hysteresis | Voltage - Supply: | 4.75V ~ 5.25V |
Product Description
TJA1041AT/CM 1/1 Transceiver Integrated Circuit Chip Half CANbus 14-SO
Specifications of TJA1041AT/CM
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70 mV |
| Data Rate | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| Base Product Number | TJA1041 |
Features of TJA1041AT/CM
■ Fully compatible with the ISO 11898 standard
■ Communication speed up to 1 Mbit/s
■ Very low ElectroMagnetic Emission (EME)
■ Differential receiver with wide common-mode range, offering high ElectroMagnetic Immunity (EMI)
■ Passive behavior when supply voltage is off
■ Automatic I/O-level adaptation to the host controller supply voltage
■ Recessive bus DC voltage stabilization for further improvement of EME behavior
■ Listen-only mode for node diagnosis and failure containment
■ Allows implementation of large networks (more than 110 nodes)
Applications of TJA1041AT/CM
The primary function of a CAN transceiver is to provide the CAN physical layer as described in the ISO 11898 standard. In the TJA1041A this primary function is complemented with a number of operating modes, fail-safe features and diagnosis features, which offer enhanced system reliability and advanced power management functionality.
Environmental & Export Classifications of TJA1041AT/CM
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
