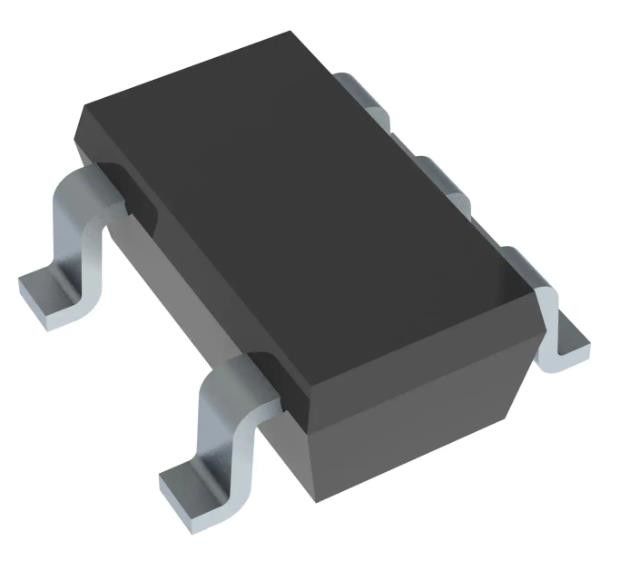

THS4304DBVT Integrated Circuit Chip Voltage Feedback Amplifier 1 Circuit SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | THS4304DBVT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Amplifier Type: | Voltage Feedback | Number Of Circuits: | 1 |
|---|---|---|---|
| Slew Rate: | 830V/µs | Gain Bandwidth Product: | 870 MHz |
| 870 MHz: | 3 GHz | Current - Input Bias: | 7 µA |
| Voltage - Input Offset: | 500 µV | Current - Supply: | 18mA |
| Current - Output / Channel: | 140 MA | Voltage - Supply Span (Min): | 2.7 V |
Product Description
THS4304DBVT Integrated Circuit Chip Voltage Feedback Amplifier 1 Circuit SOT-23-5
Specifications of THS4304DBVT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 830V/µs |
| Gain Bandwidth Product | 870 MHz |
| -3db Bandwidth | 3 GHz |
| Current - Input Bias | 7 µA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 18mA |
| Current - Output / Channel | 140 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | THS4304 |
Features of THS4304DBVT
* Wide Bandwidth: 3 GHz
* High Slew Rate: 830 V/us
* Low Voltage Noise: 2.4 nV/HZ
* Single Supply: 5 V, 3 V
* Quiescent Current: 18 mA
Applications of THS4304DBVT
* Active Filter
* ADC Driver
* Ultrasound
* Gamma Camera
* RF/Telecom
Environmental & Export Classifications of THS4304DBVT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
