TEA1755T Converter Offline Flyback Topology 110kHz ~ 150kHz 16-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TEA1755T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Breakdown: | 650V | Topology: | Flyback |
|---|---|---|---|
| Voltage - Start Up: | 22.3 V | Voltage - Supply (Vcc/Vdd): | 13.4V ~ 38V |
| Frequency - Switching: | 110kHz ~ 150kHz | Power (Watts): | 250 W |
| Fault Protection: | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage | Operating Temperature: | -40°C ~ 155°C (TJ) |
Product Description

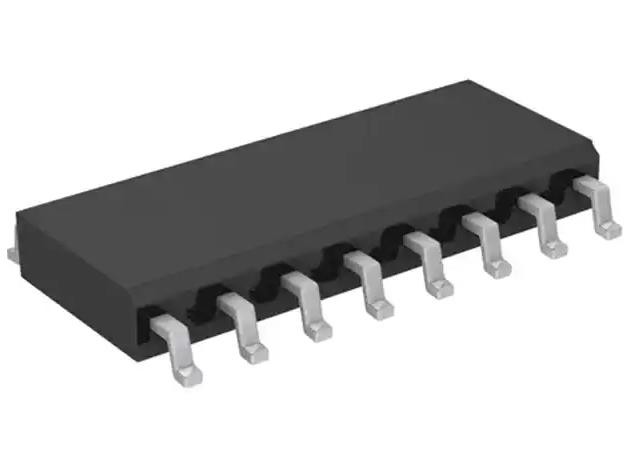

TEA1755T Converter Offline Flyback Topology 110kHz ~ 150kHz 16-SO
Specifications of TEA1755T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switches | |
| Series | GreenChip™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 22.3 V |
| Voltage - Supply (Vcc/Vdd) | 13.4V ~ 38V |
| Duty Cycle | - |
| Frequency - Switching | 110kHz ~ 150kHz |
| Power (Watts) | 250 W |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 155°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Mounting Type | Surface Mount |
| Base Product Number | TEA1755 |
Features of TEA1755T
* Integrated PFC and flyback controller
* Universal mains supply operation between 70 V (AC) to 276 V (AC)
* Dual-boost PFC with accurate maximum output voltage (N-X-P Semiconductors patented)
* High level of integration, results in cost-effective designs with very low external component counts
* Adjustable PFC switch off delay
* External PFC switch on and switch off override
* Accurate PFC switch on and switch off control (N-X-P Semiconductors patent pending)
Descriptions of TEA1755T
The device can be used in all applications requiring an efficient and cost-effective power supply solution for up to 250 W. Notebook adapters in particular benefit from the high level of integration.
