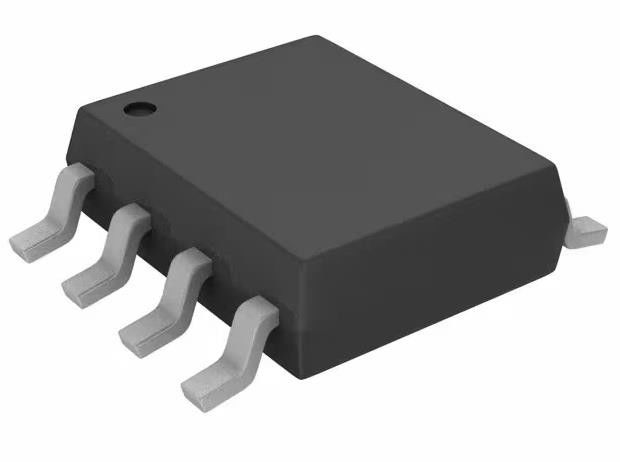

TC7WT241FU Buffer Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC7WT241FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 6mA, 6mA | Voltage - Supply: | 4.5V ~ 5.5V |
| 4.5V ~ 5.5V: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
Product Description
TC7WT241FU Buffer Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-SSOP
Specifications of TC7WT241FU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7WT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Supplier Device Package | 8-SSOP |
| Base Product Number | TC7WT241 |
Features of TC7WT241FU
• High speed: tpd = 13 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 2 μA (max) at Ta = 25 °C
• High noise immunity: VIL = 0.8 V (max), VIH = 2.0 V (min)
• Output drive capability: 15 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 6 mA (min)
Applications of TC7WT241FU
The TC7WT241FU is a high speed CMOS Dual Bus Buffers fabricated with silicon gate CMOS technology.
Environmental & Export Classifications of TC7WT241FU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
