TC7W00FU NAND Gate Integrated Circuit Chip IC 2 Channel 8-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC7W00FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | NAND Gate | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 2V ~ 6V |
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 5.2mA, 5.2mA |
| Input Logic Level - Low: | 0.5V ~ 1.8V | Input Logic Level - High: | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL: | 13ns @ 6V, 50pF | Operating Temperature: | -40°C ~ 85°C |
Product Description

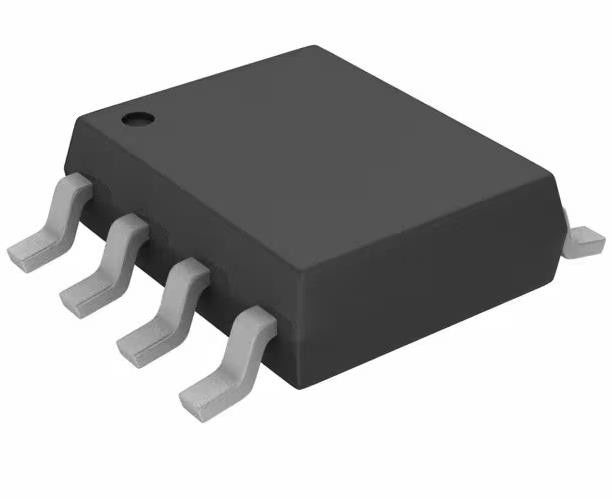

TC7W00FU NAND Gate Integrated Circuit Chip IC 2 Channel 8-SSOP
Specifications of TC7W00FU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7W |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Base Product Number | 7W00 |
Features of TC7W00FU
• High Speed : tpd = 6ns (typ.) at VCC = 5V
• Low power dissipation : ICC = 1μA (max) at Ta = 25°C
• High noise immunity : VNIH = VNIL = 28% VCC (min)
• Output drive capability : 10 LSTTL Loads
• Symmetrical Output Impedance : |IOH| = IOL= 4mA (min)
• Balanced propagation delays : tpLH ≒ tpHL
• Wide operating voltage range : VCC = 2 to 6 V
Environmental & Export Classifications of TC7W00FU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
