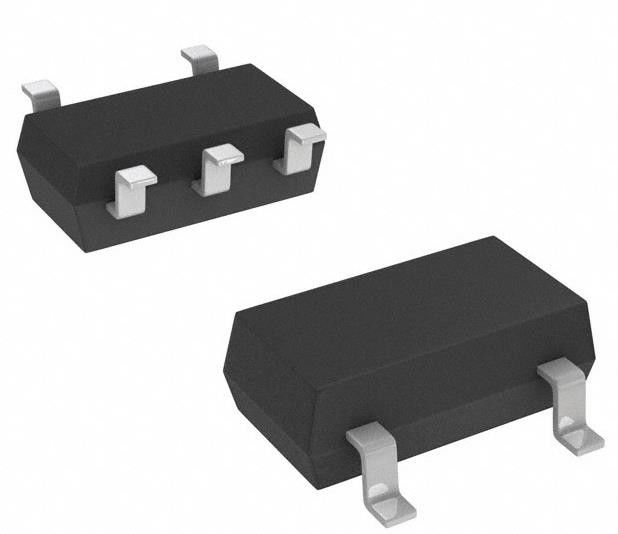

TC7S14FU Integrated Circuit Chip Inverter IC 1 Channel Schmitt Trigger 5-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC7S14FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 1 | Number Of Inputs: | 1 |
| Voltage - Supply: | 2V ~ 6V | Current - Quiescent (Max): | 1 µA |
| Current - Output High, Low: | 2.6mA, 2.6mA | Input Logic Level - Low: | 0.3V ~ 1.5V |
| Input Logic Level - High: | 1.5V ~ 4.2V | Max Propagation Delay @ V, Max CL: | 17ns @ 6V, 50pF |
Product Description
TC7S14FU Integrated Circuit Chip Inverter IC 1 Channel Schmitt Trigger 5-SSOP
Specifications of TC7S14FU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC7S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Input Logic Level - Low | 0.3V ~ 1.5V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-SSOP |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 7S14 |
Features of TC7S14FU
• High speed: tpd = 11 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
• High noise immunity: VH = 1.1 V at VCC = 5 V
• Output drive capability: 5 LSTTL loads
• Symmetrical output impedance: |IOH| = IOL = 2 mA (min)
• Balanced propagation delays: tpLH ∼− tpHL
• Wide operating voltage range: VCC (opr) = 2 to 6 V
Applications of TC7S14FU
The TC7S14 is a high speed C2MOS Schmitt Inverter fabricated with silicon gate C2MOS technology.
Environmental & Export Classifications of TC7S14FU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
