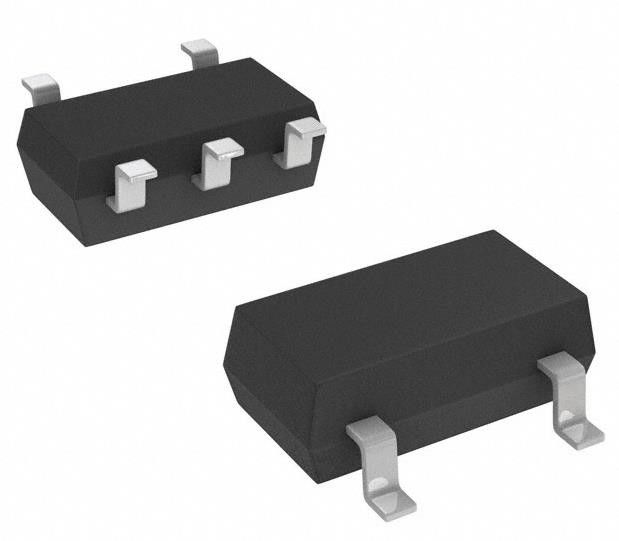

TC75S58FU Integrated Circuit Chip Comparator General Purpose Open-Drain 5-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC75S58FU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | General Purpose | Number Of Elements: | 1 |
|---|---|---|---|
| Output Type: | Open-Drain | Voltage - Supply, Single/Dual (±): | 1.8V ~ 7V, ±0.9V ~ 3.5V |
| Voltage - Input Offset (Max): | 7mV @ 5V | Current - Input Bias (Max): | 1pA @ 5V |
| Current - Output (Typ): | 25mA | Current - Quiescent (Max): | 20µA |
Product Description
TC75S58FU Integrated Circuit Chip Comparator General Purpose Open-Drain 5-SSOP
Specifications of TC75S58FU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Open-Drain |
| Voltage - Supply, Single/Dual (±) | 1.8V ~ 7V, ±0.9V ~ 3.5V |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Current - Input Bias (Max) | 1pA @ 5V |
| Current - Output (Typ) | 25mA |
| Current - Quiescent (Max) | 20µA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 800ns |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-SSOP |
| Base Product Number | TC75S58 |
Features of TC75S58FU
• Low-current power supply : IDD = 10 μA (typ.)
• Single power supply operation : VDD = ±0.9 to ±3.5 V or 1.8 to 7 V
• Wide common mode input voltage range : VSS to VDD − 0.9 V
• Open drain output circuit
• Low input bias current
• Small package
Applications of TC75S58FU
The TC75S58F/TC75S58FU is a CMOS general-purpose single comparator. The device can operate off a single power supply and draws a lower supply current than a conventional bipolar general-purpose comparator. This device’s open-drain output stage can be wire-ORed with those of other open-drain output circuits.
Environmental & Export Classifications of TC75S58FU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
