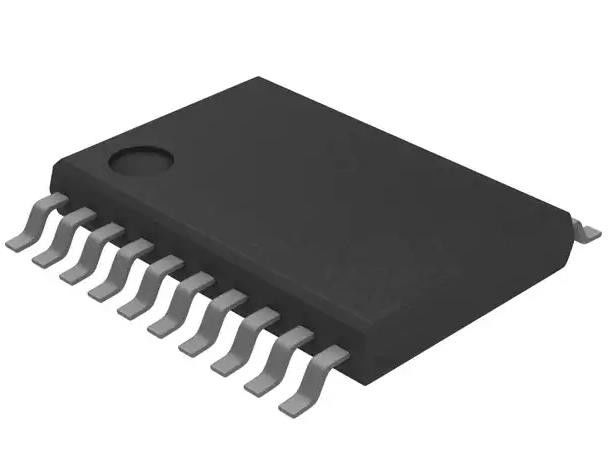

TC74VHCT245AFT Transceiver Non-Inverting 1 Element 8 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC74VHCT245AFT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Transceiver, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | Output Type: | 3-State |
| Current - Output High, Low: | 8mA, 8mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 20-TSSOP |
Product Description
TC74VHCT245AFT Transceiver Non-Inverting 1 Element 8 Bit per Element 3-State
Specifications of TC74VHCT245AFT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC74VHCT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | 74VHCT245 |
Features of TC74VHCT245AFT
• High speed: tpd = 4.9 ns (typ.) at VCC = 5 V
• Low power dissipation: ICC = 4 µA (max) at Ta = 25°C
• Compatible with TTL outputs: VIL = 0.8 V (max) VIH = 2.0 V (min)
• Power down protection is provided on all inputs and outputs
• Balanced propagation delays: tpLH ∼
− tpHL
• Low noise: VOLP = 1.6 V (max)
• Pin and function compatible with the 74 series (74AC/HC/F/ALS/LS etc.) 245 type.
Applications of TC74VHCT245AFT
The TC74VHCT245A is an advanced high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation.
Environmental & Export Classifications of TC74VHCT245AFT
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
