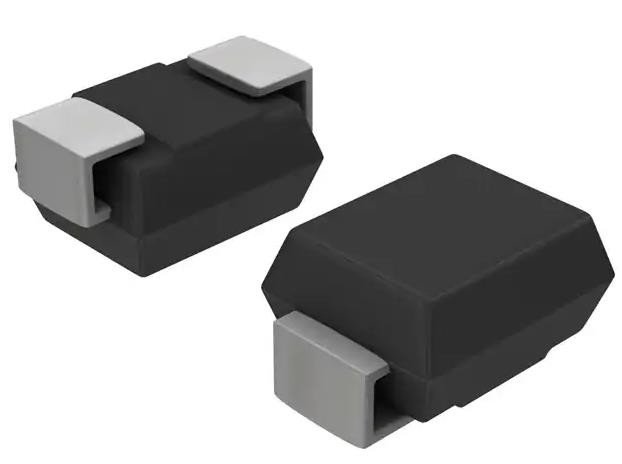

SZ1SMB26AT3G 42.1V Clamp 14.2A Ipp Tvs Diode Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SZ1SMB26AT3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 26V | Voltage - Breakdown (Min): | 28.9V |
| Voltage - Clamping (Max) @ Ipp: | 42.1V | Current - Peak Pulse (10/1000µs): | 14.2A |
| Power - Peak Pulse: | 600W | Applications: | Automotive |
| Capacitance @ Frequency: | 630pF @ 1MHz | Operating Temperature: | -65°C ~ 150°C (TJ) |
Product Description
SZ1SMB26AT3G 42.1V Clamp 14.2A Ipp Tvs Diode Surface Mount SMB
Specifications of SZ1SMB26AT3G
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Littelfuse Inc. |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 26V |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Current - Peak Pulse (10/1000µs) | 14.2A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 630pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | 1SMB |
Features of SZ1SMB26AT3G
■ Zener Transient Overvoltage Suppressors
■ Working Peak Reverse Voltage Range − 5.0 V to 170 V for uni-directional, and 10 V to 75 V for bi-directional
■ Standard Avalanche Breakdown Voltage Range
−6.4 V to 209 V for unidirectional, 11.1 V to 92.07 V for bi-directional
■ Peak Power − 600 W @ 1.0 ms
■ ESD Rating of Class 3 (> 16 kV) per Human Body Model
■ Maximum Clamp Voltage @ Peak Pulse Current
■ Low Leakage < 5.0 µA Above 10 V
■ Intended for UL 497B Type Protection
■ Response Time is Typically < 1.0 ns
■ Pb-free means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
■ SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC− Q101 Qualified and PPAP Capable
Applications of SZ1SMB26AT3G
The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.
