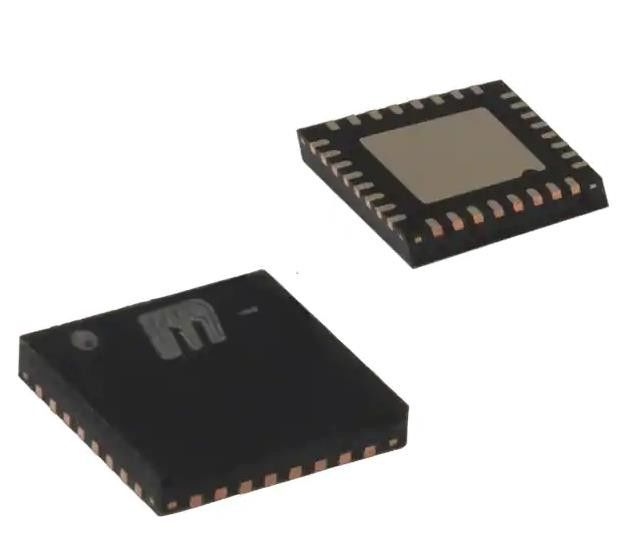

SY58029UMG-TR Integrated Circuit Chip Multiplexer 1 x 4:1 32-QFN (5x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SY58029UMG-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Multiplexer | Circuit: | 1 X 4:1 |
|---|---|---|---|
| Independent Circuits: | 1 | Current - Output High, Low: | - |
| Voltage Supply Source: | Single Supply | Voltage - Supply: | 2.375V ~ 2.625V, 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 32-VFQFN Exposed Pad |
Product Description
SY58029UMG-TR Integrated Circuit Chip Multiplexer 1 x 4:1 32-QFN (5x5)
Specifications of SY58029UMG-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Microchip Technology |
| Series | Precision Edge® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Multiplexer |
| Circuit | 1 x 4:1 |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.375V ~ 2.625V, 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | SY58029 |
Features of SY58029UMG-TR
* Selects 1 of 4 differential inputs
* Provides two copies of the selected input
* Guaranteed AC performance over temperature and voltage:
• DC-to-> 5Gbps data rate throughput
• < 390ps IN-to-Out tpd
• < 110ps tr / tf times
* Ultra low-jitter design:
• < 10psPP total jitter (clock)
• < 1psRMS random jitter
• < 10psPP deterministic jitter
• < 0.7psRMS crosstalk-induced jitter
* Unique patended input design minimizes crosstalk
* Accepts an input signal as low as 100mV
* Unique patented input termination and VT pin accepts DC- and AC-coupled inputs (CML, LVPECL, LVDS)
* 800mV 100K LVPECL output swing
* Power supply 2.5V ±5% or 3.3V ±10%
* –40°C to +85°C temperature range
* Available in 32-pin (5mm ∞ 5mm) MLF® package
Applications of SY58029UMG-TR
* Redundant clock and/or distribution
* All SONET/SDH clock/data distribution
* Loopback
* All Fibre Channel distribution
* All Gigabit Ethernet clock and/or data distribution
Environmental & Export Classifications of SY58029UMG-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
