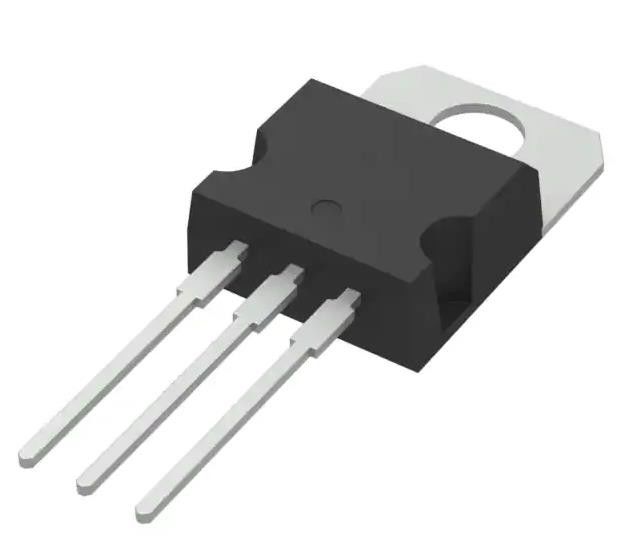

STP2N80K5 N-Channel 800 V 2A (Tc) 45W (Tc) Through Hole TO-220
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STP2N80K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 800 V | Current - Continuous Drain (Id) @ 25°C: | 2A (Tc) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 4.5Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id: | 5V @ 100µA | Gate Charge (Qg) (Max) @ Vgs: | 3 NC @ 10 V |
| Vgs (Max): | 30V | Input Capacitance (Ciss) (Max) @ Vds: | 95 PF @ 100 V |
Product Description
STP2N80K5 N-Channel 800 V 2A (Tc) 45W (Tc) Through Hole TO-220
Specifications of STP2N80K5
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | STMicroelectronics |
| Series | SuperMESH5™ |
| Package | Tube |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 800 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 10 V |
| Vgs (Max) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 95 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220 |
| Package / Case | TO-220-3 |
| Base Product Number | STP2N80 |
Features of STP2N80K5
• Industry’s lowest RDS(on) * area
• Industry’s best figure of merit (FoM)
• Ultra low gate charge
• 100% avalanche tested
• Zener-protected
Applications of STP11N60DM2
• Switching applications
Environmental & Export Classifications of STP2N80K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
