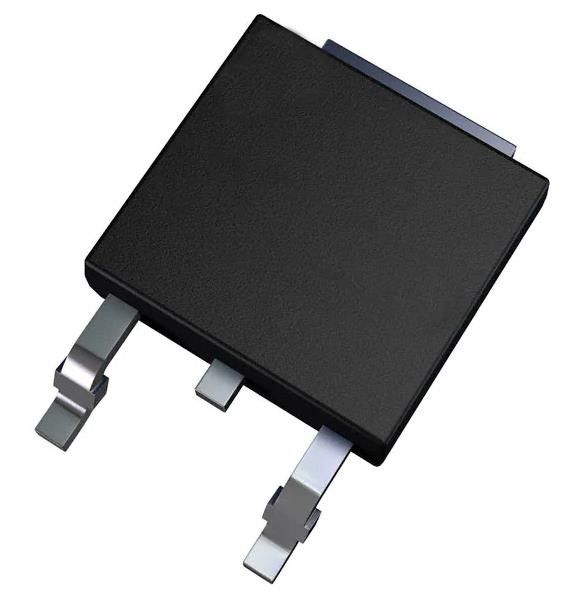

STD130N6F7 MOSFETs N-Channel 60 V 80A (Tc) 134W (Tc) Surface Mount DPAK
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ST3222CTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 60 V | Current - Continuous Drain (Id) @ 25°C: | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 5mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 42 NC @ 10 V |
Product Description
STD130N6F7 MOSFETs N-Channel 60 V 80A (Tc) 134W (Tc) Surface Mount DPAK
Specifications of STD130N6F7
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | STMicroelectronics |
| Series | STripFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 42 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 134W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Base Product Number | STD130 |
Features of STD130N6F7
* Among the lowest RDS(on) on the market
* Excellent FoM (figure of merit)
* Low Crss/Ciss ratio for EMI immunity
* High avalanche ruggedness
Applications of STD130N6F7
* Switching applications
Environmental & Export Classifications of STD130N6F7
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
