SSM6J414TU,LF P-Channel 20 V 6A (Ta) 1W (Ta) Surface Mount UF6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SSM6J414TU,LF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 20 V | Current - Continuous Drain (Id) @ 25°C: | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 1.5V, 4.5V | Rds On (Max) @ Id, Vgs: | 22.5mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id: | 1V @ 1mA | Gate Charge (Qg) (Max) @ Vgs: | 23.1 NC @ 4.5 V |
Product Description

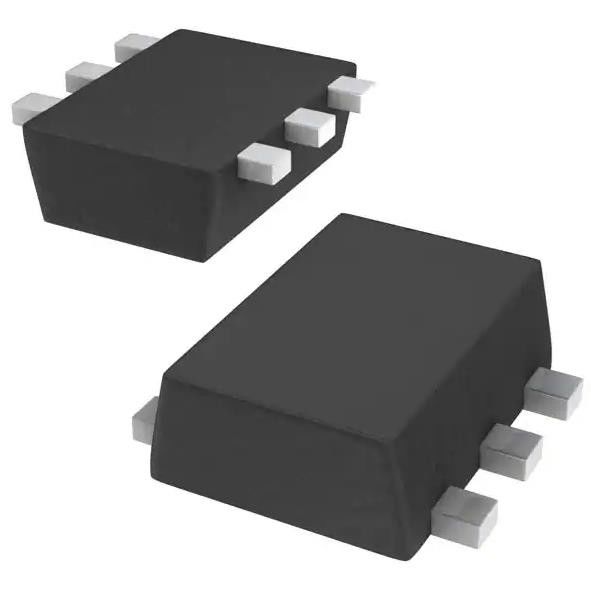

SSM6J414TU,LF P-Channel 20 V 6A (Ta) 1W (Ta) Surface Mount UF6
Specifications of SSM6J414TU,LF
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | U-MOSVI |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 22.5mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 23.1 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1650 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | UF6 |
| Package / Case | 6-SMD, Flat Leads |
| Base Product Number | SSM6J414 |
Features of SSM6J414TU,LF
(1) 1.5-V gate drive voltage.
(2) Low drain-source on-resistance:
RDS(ON) = 54 mΩ (max) (@VGS = -1.5 V)
RDS(ON) = 36 mΩ (max) (@VGS = -1.8 V)
RDS(ON) = 26 mΩ (max) (@VGS = -2.5 V)
RDS(ON) = 22.5 mΩ (max) (@VGS = -4.5 V)
Applications of SSM6J414TU,LF
• Power Management Switches
Environmental & Export Classifications of SSM6J414TU,LF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
