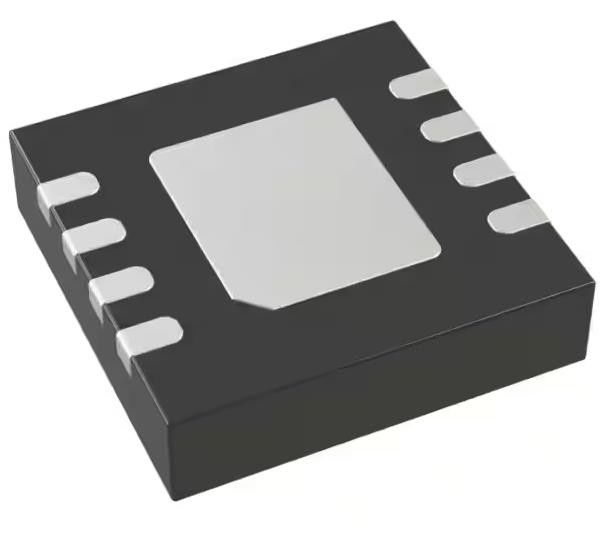

SSM2301CPZ-REEL7 Amplifier IC 1-Channel (Mono) Class D 8-LFCSP-VD (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SSM2301CPZ-REEL7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Depop, Differential Inputs, Short-Circuit And Thermal Protection, Shutdown | Type: | Class D |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 1.52W X 1 @ 8Ohm |
| Voltage - Supply: | 2.5V ~ 5V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
SSM2301CPZ-REEL7 Amplifier IC 1-Channel (Mono) Class D 8-LFCSP-VD (3x3)
Specifications of SSM2301CPZ-REEL7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Cut Tape (CT) |
| Product Status | Obsolete |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.52W x 1 @ 8Ohm |
| Voltage - Supply | 2.5V ~ 5V |
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-LFCSP-VD (3x3) |
| Package / Case | 8-VFDFN Exposed Pad, CSP |
| Base Product Number | SSM2301 |
Features of SSM2301CPZ-REEL7
* Filterless Class-D amplifier with Σ-Δ modulation
* No sync necessary when using multiple Class-D amplifiers from Analog Devices, Inc.
* 1.4 W into 8 Ω at 5.0 V supply with less than 1% THD + N
* 85% efficiency at 5.0 V, 1.4 W into 8 Ω speaker
* Greater than 98 dB SNR (signal-to-noise ratio)
* Single-supply operation from 2.5 V to 5.0 V
* 20 nA ultralow shutdown current
* Short-circuit and thermal protection
* Available in 8-lead, 3 mm × 3 mm LFCSP and MSOP packages
* Pop-and-click suppression
* Built-in resistors reduce board component count
* Fixed and user-adjustable gain configurations
Applications of SSM2301CPZ-REEL7
* Mobile phones
* MP3 players
* Portable gaming
* Portable electronics
* Educational toys
Environmental & Export Classifications of SSM2301CPZ-REEL7
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
