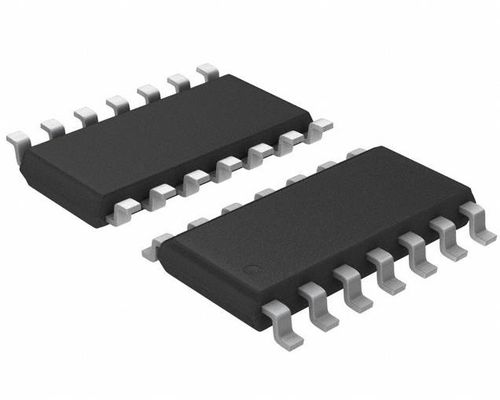

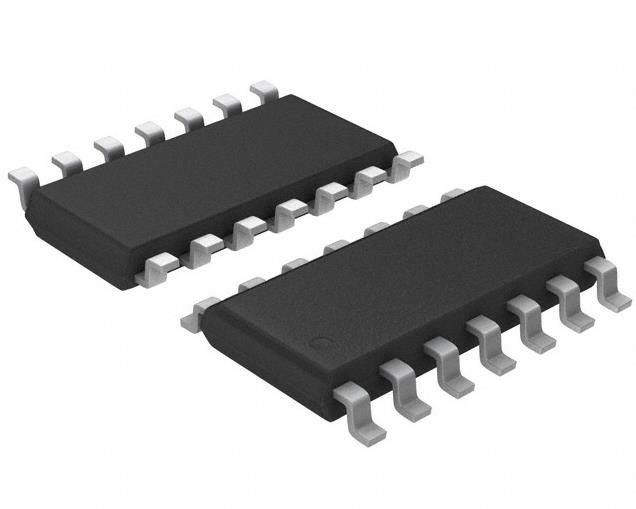

SN75189ANSR 0/4 Integrated Circuit Chip Receiver RS232 14-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN75189ANSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Receiver | Protocol: | RS232 |
|---|---|---|---|
| Number Of Drivers/Receivers: | 4/0 | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | 0°C ~ 70°C | Mounting Type: | Surface Mount |
Product Description
SN75189ANSR 0/4 Integrated Circuit Chip Receiver RS232 14-SO
Specifications of SN75189ANSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Receiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SO |
| Base Product Number | SN75189 |
Features of SN75189ANSR
Input Resistance . . . 3 kΩ to 7 kΩ
Input Signal Range... ±30 V
Operate From Single 5-V Supply
Built-In Input Hysteresis (Double Thresholds)
Response Control that Provides: Input Threshold Shifting Input Noise Filtering
Meet or Exceed the Requirements of TIA/EIA-232-F and ITU Recommendation V.28
Fully Interchangeable With Motorola MC1489 and MC1489A
Applications of SN75189ANSR
These devices are monolithic low-power Schottky quadruple line receivers designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F.
Environmental & Export Classifications of SN75189ANSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
