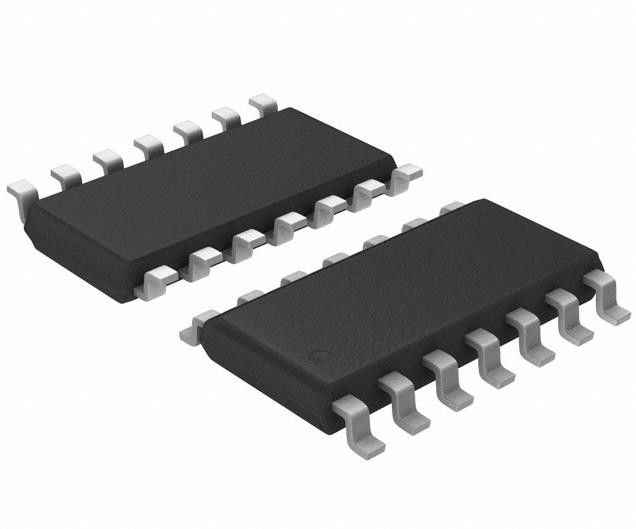

SN75188NSR 4/0 Driver IC Integrated Circuit Chip ±7.5V ~ 15V RS232 14-SO
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN75188NSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Driver | Protocol: | RS232 |
|---|---|---|---|
| Number Of Drivers/Receivers: | 4/0 | Voltage - Supply: | ±7.5V ~ 15V |
| Operating Temperature: | 0°C ~ 70°C | Supplier Device Package: | 14-SO |
Product Description
SN75188NSR 4/0 Driver IC Integrated Circuit Chip ±7.5V ~ 15V RS232 14-SO
Specifications of SN75188NSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Last Time Buy |
| Type | Driver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 4/0 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | ±7.5V ~ 15V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 14-SO |
| Base Product Number | SN75188 |
Features of SN75188NSR
Meet or Exceed the Requirements of ANSI TIA/EIA-232-E and ITU Recommendation V.28
Current-Limited Output: 10 mA Typical
Power-Off Output Impedance: 300 Ω Minimum
Slew Rate Control by Load Capacitor
Flexible Supply-Voltage Range
Input Compatible With Most TTL Circuits
Applications of SN75188NSR
The MC1488, SN55188, and SN75188 are monolithic quadruple line drivers designed to interface data terminal equipment with data communications equipment in conformance with ANSI TIA/EIA-232-E, using a diode in series with each supply-voltage terminal as shown under typical applications.
Environmental & Export Classifications of SN75188NSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
