• SN74LVC2G08YZPR AND Integrated Circuit Chip Gate IC 2 Channel 8-DSBGA (1.9x0.9)
SN74LVC2G08YZPR AND Integrated Circuit Chip Gate IC 2 Channel 8-DSBGA (1.9x0.9)

SN74LVC2G08YZPR AND Integrated Circuit Chip Gate IC 2 Channel 8-DSBGA (1.9x0.9)

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: SN74LVC2G08YZPR

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 3-5ddays
Payment Terms: T/T
Supply Ability: 1000
Get Best Price Contact Now

Detail Information

Logic Type: AND Gate Number Of Circuits: 2
Number Of Inputs: 2 Voltage - Supply: 1.65V ~ 5.5V
Current - Quiescent (Max): 10 µA Current - Output High, Low: 32mA, 32mA
Max Propagation Delay @ V, Max CL: 3.8ns @ 5V, 50pF Input Logic Level - Low: 0.7V ~ 0.8V
Input Logic Level - High: 1.7V ~ 2V Operating Temperature: -40°C ~ 85°C

Product Description

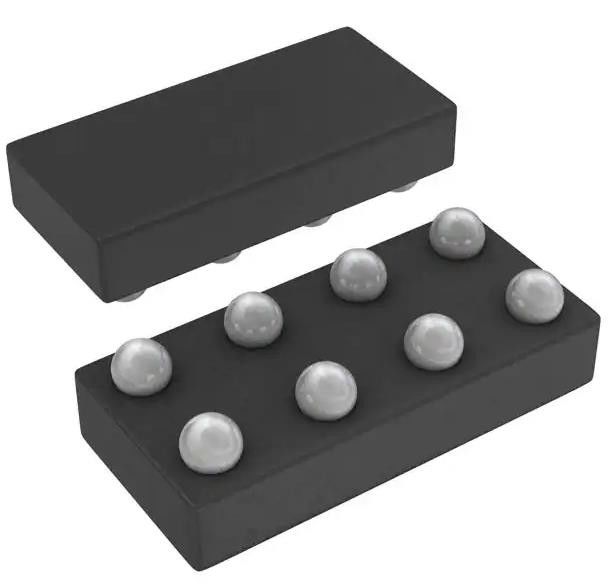

SN74LVC2G08YZPR AND Integrated Circuit Chip Gate IC 2 Channel 8-DSBGA (1.9x0.9)

Specifications of SN74LVC2G08YZPR


TYPE DESCRIPTION
Category Integrated Circuits (ICs)
  Logic
  Gates and Inverters
Mfr Texas Instruments
Series 74LVC
Package Tape & Reel (TR)
  Cut Tape (CT)
Product Status Active
Logic Type AND Gate
Number of Circuits 2
Number of Inputs 2
Features -
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 10 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.7V ~ 0.8V
Input Logic Level - High 1.7V ~ 2V
Max Propagation Delay @ V, Max CL 3.8ns @ 5V, 50pF
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Supplier Device Package 8-DSBGA (1.9x0.9)
Package / Case 8-XFBGA, DSBGA
Base Product Number 74LVC2G08



Features of SN74LVC2G08YZPR


* Available in the Texas InstrumentsNanoStartm and NanoFree Tw Package
* Supports 5-V Vcc Operation
* Inputs Accept Voltages to 5.5 V
* Max tod of 4.7 ns at 3.3 V
* Low Power Consumption, 10-pA Maximum Icc
* +24-mA Output Drive at 3.3 V
* Typical VolP (Output Ground Bounce)<0.8 V at Vcc = 3.3 V, TA = 25'C
* Typical Vov (Output Vo Undershoot)>2 V at Vcc = 3.3 V, TA = 25C
* loff Supports Live Insertion, Partial-Power-DownMode, and Back-Drive Protection
* Can Be Used as a Down Translator to TranslateInputs From a Maximum of 5.5 V Down to the VccLevel
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class I
* ESD Protection Exceeds JESD 22
- 2000-V Human Body Model (A114-A)
- 1000-V Charged-Device Model (C101)




Applications of SN74LVC2G08YZPR


• IP Phones: Wired and Wireless
• Optical Networking: EPON and Video Over Fiber
• Point-to-Point Microwave Backhaul
• Power: Telecom DC/DC Module: Analog
• Power: Telecom DC/DC Module: Digital
• Private Branch Exchange (PBX)
• Telecom Shelter: Power Distribution Unit (PDU)
• Vector Signal Analyzers and Generators
• Wireless Communications Testers
• Wireless Repeaters
• xDSL Modem/DSLAM




Environmental & Export Classifications of SN74LVC2G08YZPR


ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
