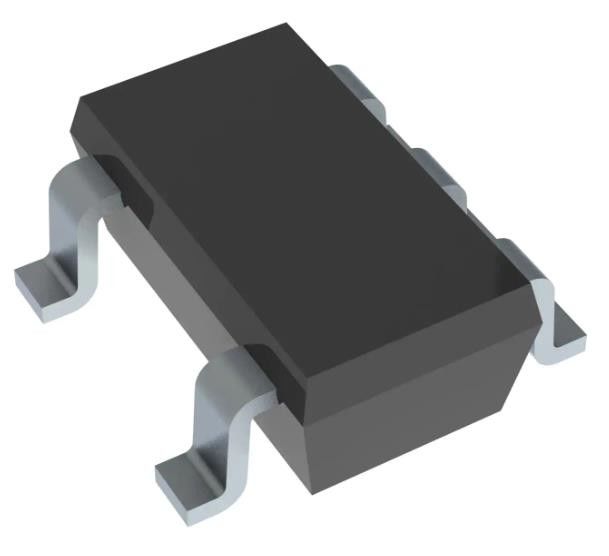

SN74LVC1G04MDBVREP Inverter Integrated Circuit Chip IC 1 Channel SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G04MDBVREP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 4 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 24mA, 24mA | Voltage - Supply: | 1.65V ~ 3.6V |
| Operating Temperature: | 1.65V ~ 3.6V | Supplier Device Package: | 14-SOIC |
Product Description
SN74LVC1G04MDBVREP Inverter Integrated Circuit Chip IC 1 Channel SOT-23-5
Specifications of SN74LVC1G04MDBVREP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.58V ~ 1.65V |
| Input Logic Level - High | 1.07V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74LVC1G04 |
Features of SN74LVC1G04MDBVREP
* Supports 5-V Vcc Operation
* lnputs Accept Voltages to 5.5 V
* Max tpd of 3.3 ns at 3.3 V
* Low Power Consumption, 10-A Max lcc
* +24-mA Output Drive at 3.3 V
* loff Supports Partial-Power-Down ModeOperation
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class ll
* ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SN74LVC1G04MDBVREP
* Controlled Baseline
* One Assembly/Test Site
* One Fabrication Site
* Available in Military (-55°C/125°C)Temperature Range
* Extended Product Life Cycle
* Extended Product-Change Notification
* Product Traceability
Environmental & Export Classifications of SN74LVC1G04MDBVREP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
