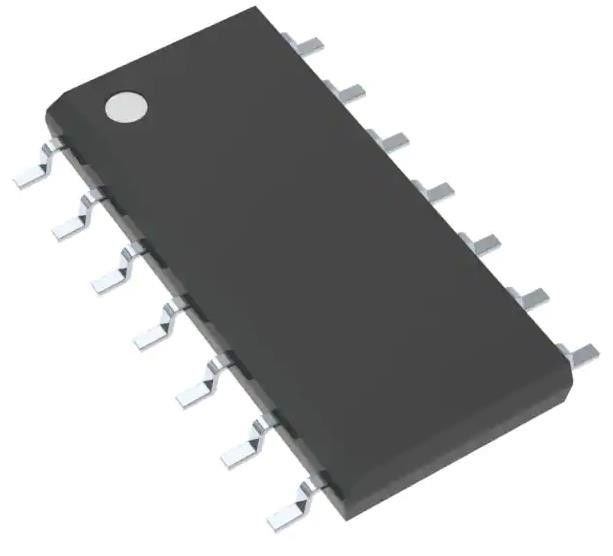

SN74LVC125AMDREP Buffer Non-Inverting 4 Element 1 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC125AMDREP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 4 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | 3-State |
| Current - Output High, Low: | 24mA, 24mA | Voltage - Supply: | 1.65V ~ 3.6V |
| Operating Temperature: | 1.65V ~ 3.6V | Supplier Device Package: | 14-SOIC |
Product Description
SN74LVC125AMDREP Buffer Non-Inverting 4 Element 1 Bit per Element 3-State
Specifications of SN74LVC125AMDREP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | 74LVC125 |
Features of SN74LVC125AMDREP
* Controlled Baseline
- One Assembly/Test Site, One FabricationSite
* Enhanced Diminishing Manufacturing SourcesDMS) Support
* Enhanced Product-Change Notification
* Qualification Pedigree (t)
* Operates From 1.65 V to 3.6 V
* Typical VoHv (Output Vo Undershoot) >2 V at/cc = 3.3 V, T, = 25°C
* Latch-Up Performance Exceeds 250 mA PerJESD 17
* ESD Protection Exceeds JESD 222000-V Human-Body Model(A114-A)
- 200-V Machine Model(A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SN74LVC125AMDREP
This quadruple bus buffer gate is designed for 1.65-V to 3.6-V VCC operation.
Environmental & Export Classifications of SN74LVC125AMDREP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
