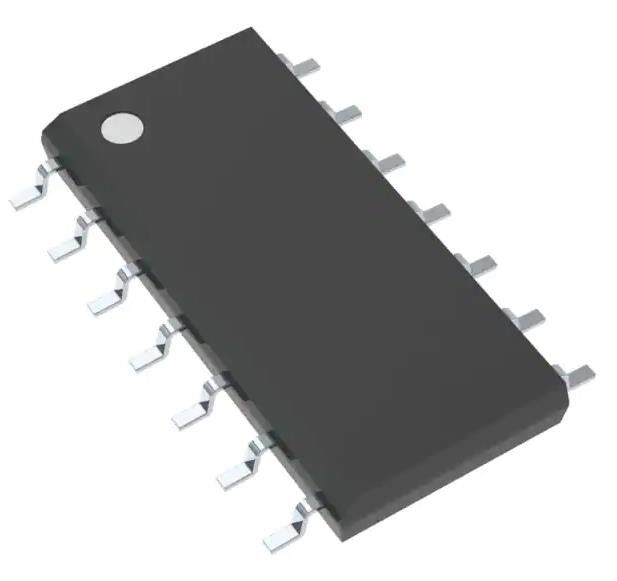

SN74LV07ADR Buffer Non-Inverting 6 Element 1 Bit per Element Open Drain Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LV07ADR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Non-Inverting | Number Of Elements: | 6 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Output Type: | Open Drain |
| Current - Output High, Low: | -, 16mA | Voltage - Supply: | 2V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Supplier Device Package: | 14-SOIC |
Product Description
SN74LV07ADR Buffer Non-Inverting 6 Element 1 Bit per Element Open Drain Output
Specifications of SN74LV07ADR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 6 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | Open Drain |
| Current - Output High, Low | -, 16mA |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | 74LV07 |
Features of SN74LV07ADR
* 2-V to 5.5-V Vcc Operation
* Typical Vol (Output Ground Bounce)< 0.8 V at Vcc = 3.3 V, TA = 25'C
* Typical VoHv (Output Vow Undershoot)> 2.3 V at Vcc = 3.3 V, TA = 25C
* Outputs are Disabled During Power Upand Power Down With Inputs Tied to Vcc
* Support Mixed-Mode Voltage Operationon All Ports
* Latch-Up Performance Exceeds 100 mAPer JESD 78, Class ll
* ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model
- 200-V Machine Model
- 1000-V Charged-Device Model
Applications of SN74LV07ADR
• Servers
• Telecom Infrastructures
• TV Set-Top Boxes
Environmental & Export Classifications of SN74LV07ADR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
