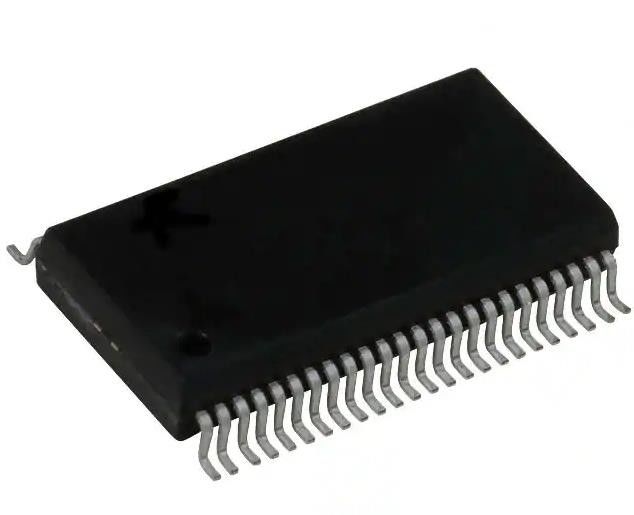

SN74CBTLV16210GR Integrated Circuit Chip Bus Switch 10 x 1:1 48-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74CBTLV16210GR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Bus Switch | Circuit: | 10 X 1:1 |
|---|---|---|---|
| 10 X 1:1: | 2 | Voltage Supply Source: | Single Supply |
| Voltage - Supply: | 2.3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
| Supplier Device Package: | 48-TSSOP | ||
Product Description
SN74CBTLV16210GR Integrated Circuit Chip Bus Switch 10 x 1:1 48-TSSOP
Specifications of SN74CBTLV16210GR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Texas Instruments |
| Series | 74CBTLV |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Bus Switch |
| Circuit | 10 x 1:1 |
| Independent Circuits | 2 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74CBTLV16210 |
Features of SN74CBTLV16210GR
Member of the Texas Instruments Widebus Family
5-Ω Switch Connection Between Two Ports
Rail-to-Rail Switching on Data I/O Ports
Ioff Supports Partial-Power-Down Mode Operation
Applications of SN74CBTLV16210GR
The SN74CBTLV16210 provides 20 bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
Environmental & Export Classifications of SN74CBTLV16210GR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
