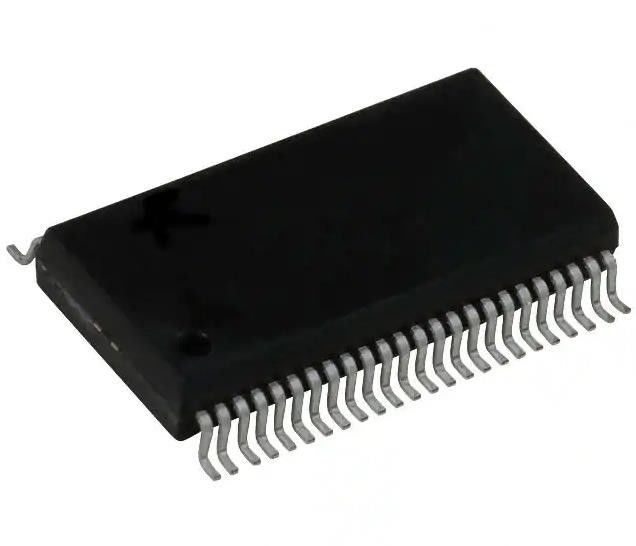

SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AVC16T245DGGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Translation Transceiver | Number Of Elements: | 8 |
|---|---|---|---|
| Output Type: | 3-State | Current - Output High, Low: | 12mA, 12mA |
| Voltage - Supply: | 1.2V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Supplier Device Package: | 48-TSSOP | ||
Product Description
SN74AVC16T245DGGR Translation Transceiver 2 Element 8 Bit per Element 3-State
Specifications of SN74AVC16T245DGGR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74AVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Translation Transceiver |
| Number of Elements | 2 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 74AVC16T245 |
Features of SN74AVC16T245DGGR
* Control Inputs V/V. Levels Are Referenced toVccA Voltage
* Vcc lsolation Feature - lf Either Vcc Input s atGND, Both Ports Are in the High-lmpedance State
* Overvoltage-Tolerant Inputs and Outputs AllowMixed-Voltage-Mode Data Communications
* Fully Configurable Dual-Rail Design Allows EachPort to Operate Over the Full 1.2 V to 3.6 VPower-Supply Range
* loff Supports Partial-Power-Down Mode Operation
* I/Os Are 4.6 V Tolerant
* Maximum Data Rates
- 380 Mbps (1.8 V to 3.3 V Level-Shifting)
- 200 Mbps (<1.8 V to 3.3 V Level-Shifting)
- 200 Mbps (Level-Shifting to 2.5 V or 1.8 V)
- 150 Mbps (Level-Shifting to 1.5 V)
- 100 Mbps (Level-Shifting to 1.2 V)
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class Il
* ESD Protection Exceeds JESD 22
- 8000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Applications of SN74AVC16T245DGGR
• Personal Electronics
• Industrial
• Enterprise
• Telecom
Environmental & Export Classifications of SN74AVC16T245DGGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
