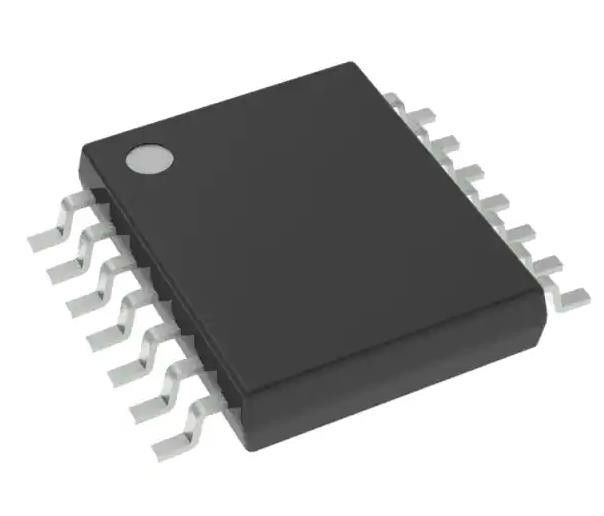

SN74ALVC08PWR AND Gate Integrated Circuit Chip IC 4 Channel 14-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74ALVC08PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | AND Gate | Number Of Inputs: | 2 |
|---|---|---|---|
| Number Of Circuits: | 4 | Voltage - Supply: | 1.65V ~ 3.6V |
| Current - Quiescent (Max): | 10 µA | Current - Output High, Low: | 24mA, 24mA |
| Input Logic Level - Low: | 0.7V ~ 0.8V | Input Logic Level - High: | 1.7V ~ 2V |
Product Description
SN74ALVC08PWR AND Gate Integrated Circuit Chip IC 4 Channel 14-TSSOP
Specifications of SN74ALVC08PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74ALVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.9ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74ALVC08 |
Features of SN74ALVC08PWR
• Operates From 1.65 V to 3.6 V
• Max t pd of 2.9 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Applications of SN74ALVC08PWR
This quadruple 2-input positive-AND gate is designed for 1.65-V to 3.6-V VCC operation.
Environmental & Export Classifications of SN74ALVC08PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
