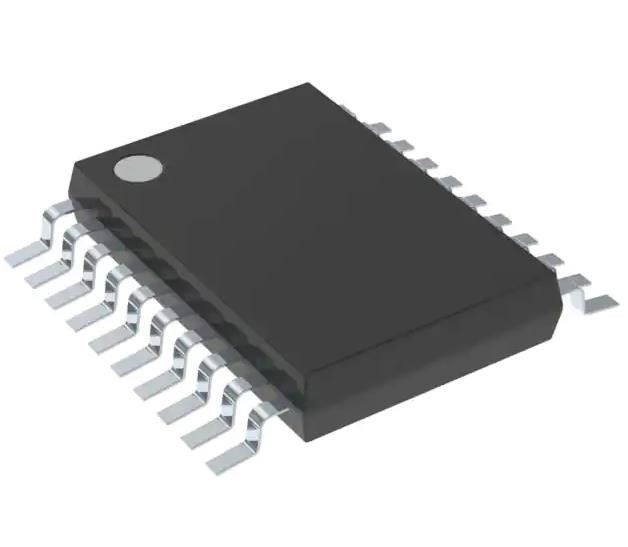

SN74ALS240ANSR IC Buffer Inverting 2 Element 4 Bit per Element 3-State Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74ALS240ANSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Buffer, Inverting | Number Of Elements: | 2 |
|---|---|---|---|
| Number Of Bits Per Element: | 4 | Output Type: | 3-State |
| Current - Output High, Low: | 15mA, 24mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | 0°C ~ 70°C (TA) | Supplier Device Package: | 20-SO |
Product Description
SN74ALS240ANSR IC Buffer Inverting 2 Element 4 Bit per Element 3-State Output
Specifications of SN74ALS240ANSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74ALS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SO |
| Base Product Number | 74ALS240 |
Features of SN74ALS240ANSR
* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
* pnp Inputs Reduce dc Loadin
Applications of SN74ALS240ANSR
These octal buffers/drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitter.
Environmental & Export Classifications of SN74ALS240ANSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
