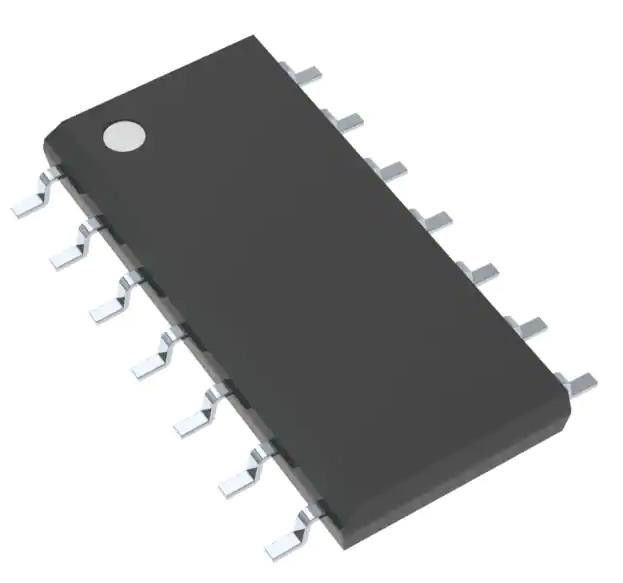

SN74AC08DR Integrated Circuit Chip AND Gate IC 4 Channel 14-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AC08DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | AND Gate | Number Of Circuits: | 4 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 2V ~ 6V |
| Current - Output High, Low: | 24mA, 24mA | Current - Quiescent (Max): | 2 µA |
| Input Logic Level - Low: | 0.9V ~ 1.65V | Input Logic Level - High: | 2.1V ~ 3.85V |
Product Description
SN74AC08DR Integrated Circuit Chip AND Gate IC 4 Channel 14-SOIC
Specifications of SN74AC08DR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.9V ~ 1.65V |
| Input Logic Level - High | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74AC08 |
Features of SN74AC08DR
2-V to 6-V VCC Operation
Inputs Accept Voltages to 6 V
Max tpd of 7.5 ns at 5 V
Applications of SN74AC08DR
The ’AC08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y = A B or Y = A + B in positive logic.
