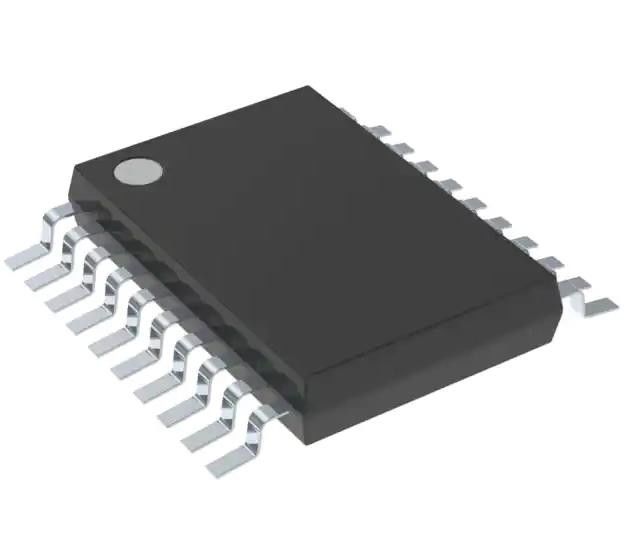

SN74ABT245BNSR Transceiver IC Non-Inverting 1 Element 8 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74ABT245BNSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Transceiver, Non-Inverting | Number Of Elements: | 1 |
|---|---|---|---|
| Number Of Bits Per Element: | 8 | ROutput Type: | 3-State |
| Current - Output High, Low: | 32mA, 64mA | Voltage - Supply: | 4.5V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 20-SO |
Product Description
SN74ABT245BNSR Transceiver IC Non-Inverting 1 Element 8 Bit per Element 3-State
Specifications of SN74ABT245BNSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74ABT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SO |
| Base Product Number | 74ABT245 |
Features of SN74ABT245BNSR
* Typical VOLP (Output Ground Bounce) <1 V at VCC = 5 V, TA = 25°C
* Ioff and Power-Up 3-State Support Hot Insertion
* High-Drive Outputs (−32-mA IOH, 64-mA IOL)
* Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD 17
* ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
Applications of SN74ABT245BNSR
These octal bus transceivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.
Environmental & Export Classifications of SN74ABT245BNSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
