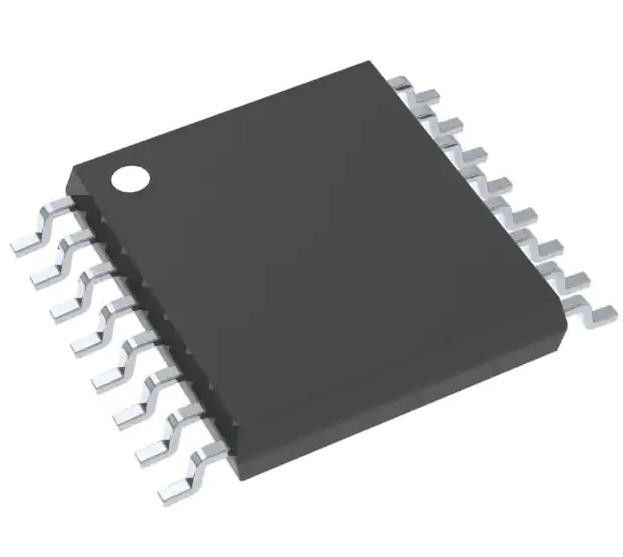

SN65LVDS33PWR Integrated Circuit Chip 0/4 Receiver LVDS 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN65LVDS33PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Receiver | Applications: | LVDS |
|---|---|---|---|
| Number Of Drivers/Receivers: | 0/4 | Receiver Hysteresis: | 50 MV |
| Data Rate: | 400Mbps | Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 16-TSSOP |
Product Description
SN65LVDS33PWR Integrated Circuit Chip 0/4 Receiver LVDS 16-TSSOP
Specifications of SN65LVDS33PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 65LVDS |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Receiver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 0/4 |
| Duplex | - |
| Receiver Hysteresis | 50 mV |
| Data Rate | 400Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 65LVDS33 |
Features of SN65LVDS33PWR
* 400-Mbps Signaling Rate(" and 200-Mxfr/sData Transfer Rate
* Operates With a Single 3.3-V Supply
* -4 V to 5 V Common-Mode Input VoltageRange
* Differential Input Thresholds <+50 mV With 50mV of Hysteresis Over Entire Common-ModeInput Voltage Range
* lntegrated 110-2 Line Termination ResistorsOn LVDT Products
* TSSOP Packaging (33 Only)
* Complies With TIA/EIA-644 (LVDS)
* Active Failsafe Assures a High-Level OutputWith No Input
* Bus-Pin ESD Protection Exceeds 15 kV HBM
* Input Remains High-lmpedance on PowerDown
* TTL Inputs Are 5 V Tolerant
* Pin-Compatible With the AM26LS32,SN65LVDS32B,uA9637, SN65LVDS9637B
Applications of SN65LVDS33PWR
This family of four LVDS data line receivers offers the widest common-mode input voltage range in the industry.
Environmental & Export Classifications of SN65LVDS33PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
