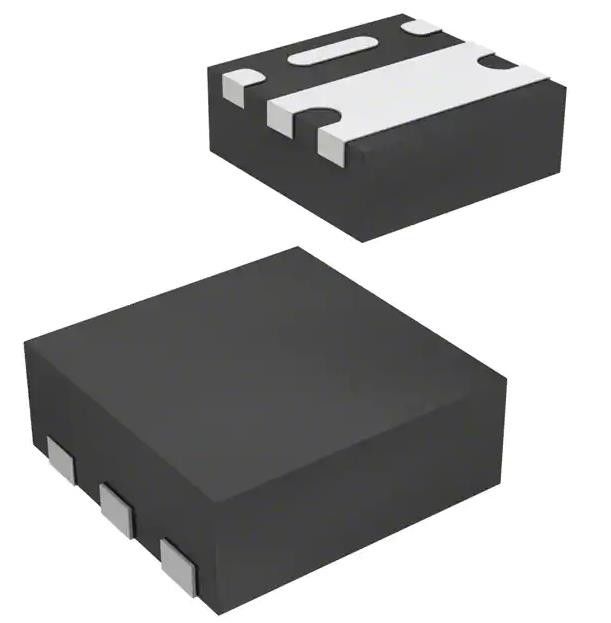

SIA427DJ-T1-GE3 P-Channel 8 V 12A 3.5W (Ta), 19W PAK® SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SIA427DJ-T1-GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 8 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 12A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs: | 16mOhm @ 8.2A, 4.5V | Vgs(th) (Max) @ Id: | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 50 NC @ 5 V | Vgs (Max): | ±5V |
Product Description
SIA427DJ-T1-GE3 Integrated Circuit Chip P-Channel 8 V 12A 3.5W (Ta), 19W PAK® SC-70-6
Specifications of SIA427DJ-T1-GE3
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Vishay Siliconix |
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 16mOhm @ 8.2A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 5 V |
| Vgs (Max) | ±5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2300 pF @ 4 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.5W (Ta), 19W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SC-70-6 |
| Package / Case | PowerPAK® SC-70-6 |
| Base Product Number | SIA427 |
Features of SIA427DJ-T1-GE3
• TrenchFET® Power MOSFET
• New Thermally Enhanced PowerPAK® SC-70 Package
- Small Footprint Area
- Low On-Resistance
• 100 % Rg Tested
Applications of SIA427DJ-T1-GE3
• Load Switch, for 1.2 V Power Line for Portable and Handheld Devices
Environmental & Export Classifications of SIA427DJ-T1-GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
