MP3305DD-LF-Z LED Driver IC 1 Output DC DC Regulator PWM Dimming 1.33A 8-QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MP3305DD-LF-Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | DC DC Regulator | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Internal Switch(s): | Yes | Number Of Outputs: | 1 |
| Voltage - Supply (Min): | 2.5 V | Voltage - Supply (Max): | 6V |
| Voltage - Output: | 36V | Current - Output / Channel: | 1.33A (Switch) |
Product Description

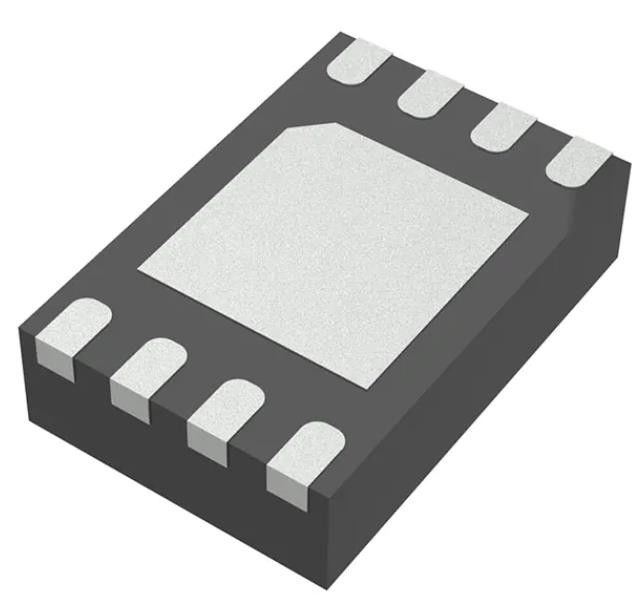

MP3305DD-LF-Z LED Driver IC 1 Output DC DC Regulator PWM Dimming 1.33A 8-QFN
Specifications of MP3305DD-LF-Z LED
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Monolithic Power Systems Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 6V |
| Voltage - Output | 36V |
| Current - Output / Channel | 1.33A (Switch) |
| Frequency | 2.2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (2x3) |
| Base Product Number | MP3305 |
Features of MP3305DD-LF-Z LED
• Internal Power MOSFET
• Drives up to 10 Series White LEDs
• Up to 88% Efficiency
• PWM Dimming Frequency from 250Hz to 50kHz
• 2.2MHz Fixed Switching Frequency
• Adjustable Open Load Shutdown Threshold (OVP)
• Low 200mV Feedback Voltage
• UVLO, Thermal Shutdown
• Internal 1.3A Current Limit
• Available in 2mm x 3mm QFN8 Package
Applications of MP3305DD-LF-Z LED
• LCD Panels
• Digital Picture Frames
• Handheld Computers and PDAs
• Digital Still Cameras
• Small LCD Displays
